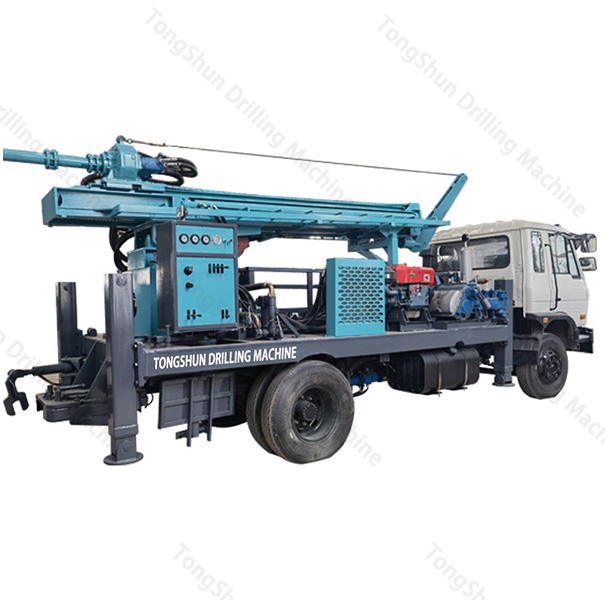

Portability Advantage: Adaptable to changing job sites, our water well drill pipe well drilling rig is the ideal choice for your projects. Lightweight, easily transportable, and quick to deploy, it enables rapid drilling operations within short time frames.
Flexibility and Adaptability: Whether in rural or urban settings, our water well drill pipe well drilling rig navigates various terrains and environments with ease. Its efficient operational performance makes it the preferred choice for narrow spaces and irregular terrains.
Cost-effectiveness: Providing efficient drilling at an affordable price, our water well drill pipe well drilling rig offers a competitive solution for small-scale projects or those requiring flexibility.
Technological Innovation and Support: Beyond delivering high-performance, our rig comes with professional technical support and customization options. Our technical team ensures the efficient and safe completion of your drilling tasks.
Versatile Drilling Capability: Drilling diameter range 140-350mm.
Enhanced Efficiency: Drilling depth 350m; Penetration efficiency 15-35m/h.
Adaptive Specifications: Drill pipe diameter 89mm, 102mm; Length 3.0m, 6.0m.
Main specifications
Equipped capacitor | 95kW |
Using air pressure | 1.7-3.5MPa |
Walking speed | 80km/h |
Dimension | 8050×2400×3300mm |
| Climbing angles | 30Max. |
Swing torque | 6200-8500 N.m |
Rig lifting force | 24T |
Air consumption | 18-35 m³/min |
Customization Services
Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.
Specialized Attachments: Custom attachments for unique drilling requirements.
Spec | Unit | Prameter |
| The weight | T | 15 |
The hole diameter | mm | 140-350 |
| Drilling depth | m | 350 |
One-time advance length | m | 6.6 |
Walking speed | km/h | 80 |
Climbing angles | Max. | 30 |
Equipped capacitor | kW | 95 |
Using air pressure | MPa | 1.7-3.5 |
| Air consumption | m³/min | 18-32 |
Swing speed | RPM | 55-120 |
The penetration efficienc | m/h | 15-35 |
Drill pipe diameter | m | 89，102 |
Drill pipe length | m | 3.0, 6.0 |
Rig lifting force | T | 24 |
Swing torque | N.m | 6200-8500 |
Dimension | mm | 8050×2400×3300 |
Truck | Dong Feng Car | |
Car engine | Cummins EQ6BT5.9 ,Six-Cylinder Diesel 190 HP | |
Drive form | 6×6, 153-row semi-cab | |
Car carrying capacity | Front drive axle: 4.1 tons ；Rear axle: 8.8 tons | |
Tire specifications | 12.5 R20 | |
Steering wheel | Left Side | |
Mud Pump Model | BW450-5 | |
| Note: The engine can be customized | ||
Usage Guidelines
Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage
Application Range
Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects
With our water well drill pipe well drilling rig, you get the perfect combination of portability and efficiency. Contact us to learn more about how this product can meet the demands of your project.
