  • TSHY-800 Truck Mounted Wate Well Drilling Rig

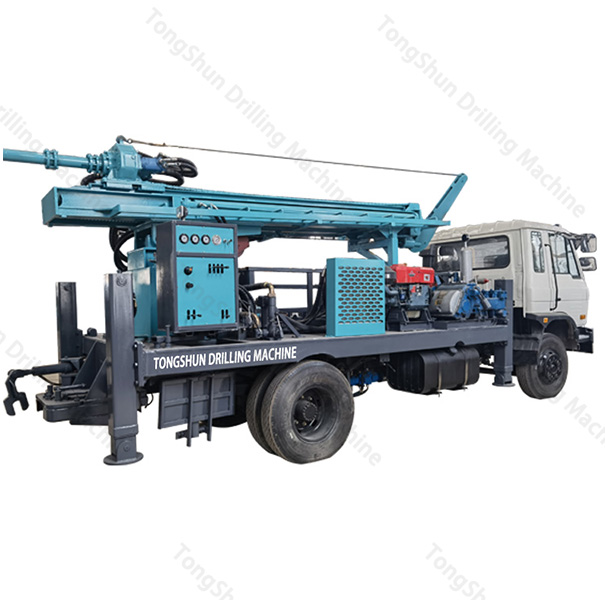

TSHY-800 Truck Mounted Wate Well Drilling Rig

Share

The Fusion of Portability and Efficiency — Our water well drill pipe Well Drilling Rig

  • Portability Advantage: Adaptable to changing job sites, our water well drill pipe well drilling rig is the ideal choice for your projects. Lightweight, easily transportable, and quick to deploy, it enables rapid drilling operations within short time frames.

  • Flexibility and Adaptability: Whether in rural or urban settings, our water well drill pipe well drilling rig navigates various terrains and environments with ease. Its efficient operational performance makes it the preferred choice for narrow spaces and irregular terrains.

  • Cost-effectiveness: Providing efficient drilling at an affordable price, our water well drill pipe well drilling rig offers a competitive solution for small-scale projects or those requiring flexibility.

  • Technological Innovation and Support: Beyond delivering high-performance, our rig comes with professional technical support and customization options. Our technical team ensures the efficient and safe completion of your drilling tasks.



Product Features

  • Versatile Drilling Capability: Drilling diameter range 115-650mm.

  • Enhanced Efficiency: Drilling depth 800m; Penetration efficiency 15-35 m/h.

  • Adaptive Specifications: Drill pipe diameter  102mm, 108mm, 114mm; Length 2.0m, 3.0m, 4.5m, 6.0m.


Main specifications

Equipped capacitor

132kW

Using air pressure

1.7-3.5MPa

Dimension

8400×2500×3100mm
Climbing angles

30Max.

Swing torque

8500-1700N.m

Rig lifting force

30T

Car engine

Cummins EQ6BT5.9 ,Six-Cylinder Diesel 190 HP


Customization Services

  • Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.

  • Specialized Attachments: Custom attachments for unique drilling requirements.



Spec

UnitPrameter
The weight

T

15

The hole diameter

mm

115-650
Drilling depthm

800

One-time advance length

m

6.6

Climbing anglesMax.

30

Equipped capacitor

kW132

Using air pressure

MPa

1.7-3.5

Swing speed

RPM80-145

The penetration efficienc

m/h

15-35

Drill pipe diameter

mm102, 108, 114

Drill pipe length

m2.0,  3.0, 4.5, 6.0

Rig lifting force

T30

Swing torque

N.m

8500-1700

Dimension

mm

8400×2500×3100

Width of loading

m2.95

Rapid rise spee

m/min20

Rapid drilling speed

m/min40

Equipped with hammer


Medium and high wind pressure series

Car engin


Cummins EQ6BT5.9 ,Six-Cylinder Diesel 190 HP

Drive form


6×6, 153-row semi-cab

Note: The engine can be customized


Usage Guidelines

  • Operational Manual: Refer to the manual for proper usage and safety precautions.

  • Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.

  • Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage

Application Range

  • Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development

  • Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects

Contact Us

With our water well drill pipe well drilling rig, you get the perfect combination of portability and efficiency. Contact us to learn more about how this product can meet the demands of your project.
