  • TSHY200 Truck Mounted Water Well Drilling Rig

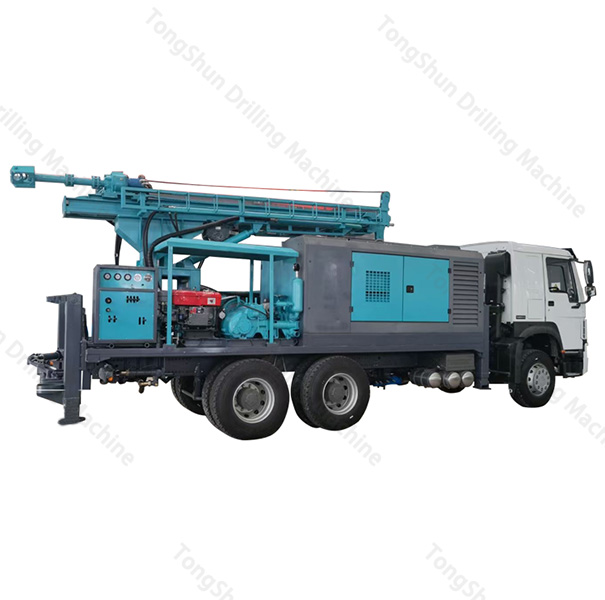

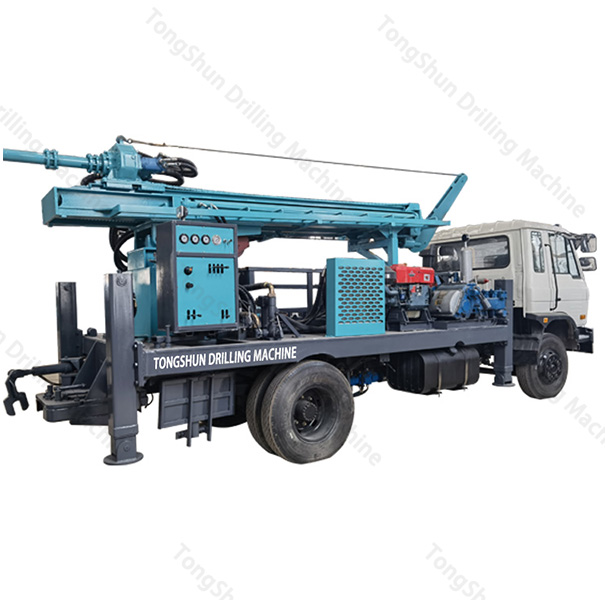

TSHY200 Truck Mounted Water Well Drilling Rig

Share

The Fusion of Portability and Efficiency — Our Truck Mounted Water Well Drilling Rig

  • Portability Advantage: Adaptable to changing job sites, our truck mounted water well drilling rig is the ideal choice for your projects. Lightweight, easily transportable, and quick to deploy, it enables rapid drilling operations within short time frames.

  • Flexibility and Adaptability: Whether in rural or urban settings, our truck mounted water well drilling rig navigates various terrains and environments with ease. Its efficient operational performance makes it the preferred choice for narrow spaces and irregular terrains.

  • Cost-effectiveness: Providing efficient drilling at an affordable price, our truck mounted water well drilling rig offers a competitive solution for small-scale projects or those requiring flexibility.

  • Technological Innovation and Support: Beyond delivering high-performance, our rig comes with professional technical support and customization options. Our technical team ensures the efficient and safe completion of your drilling tasks.


Product Features

  • Versatile Drilling Capability: Drilling diameter range 140-305mm.

  • Enhanced Efficiency: Drilling depth 200m; Penetration efficiency 15-35 m/h.

  • Adaptive Specifications: Drill pipe diameter  76mm, 89mm; Length 2.0m, 3.0m.


Main specifications

Equipped capacitor

65-70kW

Using air pressure

1.7-3.0MPa

Dimension

8400×2500×3100mm
Climbing angles

30Max.

Swing torque

3500-4800 N.m

Rig lifting force

16T

Car engine

Cummins EQ6BT5.9 ,Six-Cylinder Diesel 190 HP


Customization Services

  • Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.

  • Specialized Attachments: Custom attachments for unique drilling requirements.



Spec

UnitPrameter
The weight

T

12

The hole diameter

mm

140-305
Drilling depthm

200

One-time advance length

m

3.3

Climbing anglesMax.

30

Equipped capacitor

kW65-70

Using air pressure

MPa

1.7-3.0

Swing speed

RPM66-135

The penetration efficienc

m/h

15-35

Drill pipe diameter

m76, 89

Drill pipe length

m2.0,  3.0

Rig lifting force

T16

Swing torque

N.m3500-4800

Dimension

mm

8400×2500×3100

Equipped with hammer


Medium and high wind pressure series

Car engin


Cummins EQ6BT5.9 ,Six-Cylinder Diesel 190 HP

Drive form


6×6, 153-row semi-cab

Car carrying capacity


Front drive axle: 4.1 tons Middle bridge: 4.4 tons Rear axle: 4.4 tons

Tire specifications


12.5 R20

Mud Pump Mode


BW250

Air Compressor Working pressure:

MPa

18

Air Compressor Air flow capacity:

m³/min

18

Air Compressor Rated power:

kW

162

Note: The engine can be customized


Usage Guidelines

  • Operational Manual: Refer to the manual for proper usage and safety precautions.

  • Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.

  • Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage

Application Range

  • Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development

  • Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects
