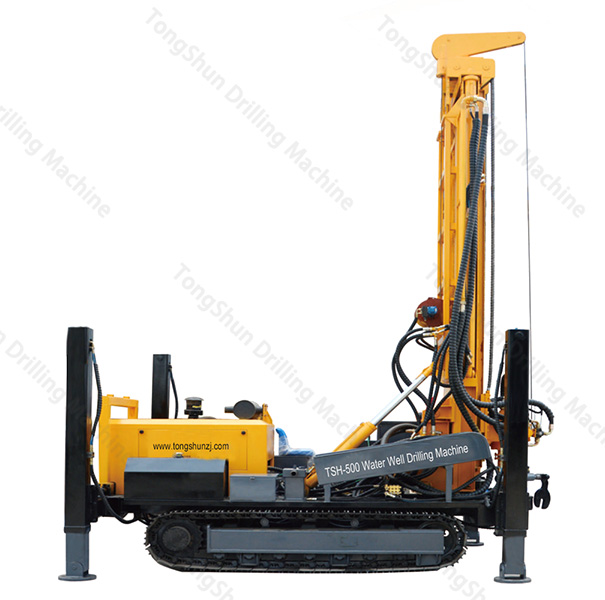

TSH-500 Crawler Mounted Water Well Drilling Rig

TSH-500 Crawler Mounted Water Well Drilling Rig

Inquire Now Next Product

Description

Product Features

Versatile Drilling Capability: Drilling diameter range 140-350mm
Enhanced Efficiency: Drilling depth 500m; Penetration efficiency 15-35m/h
Adaptive Specifications: Drill pipe diameter 102mm, 108mm, 114mm; Length 1.5m, 2.0m, 3.0m, 6.0m

Main specifications

Equipped capacitor	118kW
Using air pressure	1.7-3.5MPA
Walking speed	2.5km/h
Dimension	6200x2200x2650mm
Climbing angles	30Max.
Swing torque	7500-10000N.m
Rig lifting force	26T
Air consumption	17-42m³/min
Fast feeding speed	40m/min

Customization Services

Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs
Specialized Attachments: Custom attachments for unique drilling requirements

Specification

Spec	Unit	Prameter
The weight	T	11.5
The hole diameter	mm	140-300
Drilling depth	m	500
One-time advance length	m	6.6
Walking speed	km/h	2.5
Climbing angles	Max.	30
Equipped capacitor	kW	118
Using air pressure	MPa	1.7-3.5
Air consumption	m³/min	17-42
Swing speed	RPM	45-140
The penetration efficienc	m/h	15-35
Drill pipe diameter	m	102, 108, 114
Drill pipe length	m	1.5, 2.0, 3.0, 6.0
Rig lifting force	T	26
Rapid rise speed	m/min	20
Fast feeding speed	m/min	40
Width of loading	m	2.85
Hoisting force of winch	T	2
Swing torque	N.m	7500-10000
Dimension	mm	6200x2200x2650
Equipped with hammer		Medium and high wind pressure series
High leg strok	m	1.7
The engine brand		Yuchai engine
Note: The engine can be customized

Usage Guidelines

Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage

Application Range

Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects

Contact Us

For inquiries or additional information on the DTH Crawler-Mounted Water Well Drilling Rig or other products, reach out to our professional sales team.
