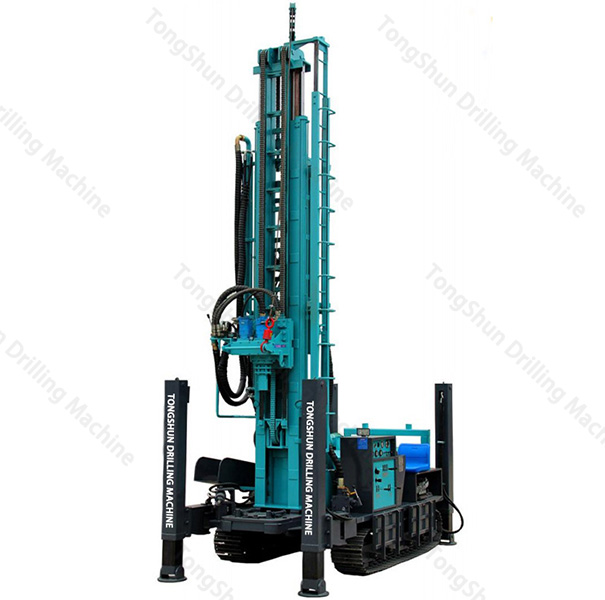

TSH-680 Crawler Mounted Water Well Drilling Rig

TSH-680 Crawler Mounted Water Well Drilling Rig

Inquire Now Next Product

Description

Product Features

Versatile Drilling Capability: Drilling diameter range 140-400mm.
Enhanced Efficiency: Drilling depth 680m; Penetration efficiency 15-35m/h.
Adaptive Specifications: Drill pipe diameter 102mm, 108mm, 114mm; Length 1.5m, 2.0m, 3.0m, 6.0m.

A Crawler Drill Machine is characterized by its tracked undercarriage, providing superior mobility and stability on uneven or challenging terrains. Key features include powerful drilling capabilities, versatility in various drilling applications, and robust construction for durability. The advantages of using a Crawler Drill Machine include increased efficiency in drilling operations, the ability to navigate and operate in difficult environments, and enhanced safety for operators due to its stable platform and advanced control systems.

Main specifications

Equipped capacitor	153kW
Using air pressur	1.7-3.5MPa
Walking speed	2.5km/h
Dimension	6300x2300x2650mm
Climbing angles	30Max.
Swing torque	8850-13150N.m
Rig lifting force	30T
Air consumption	17-42m³/min
Fast feeding speed	40m/min

Customization Services

Drill Pipe Specifications : Tailor drill pipe diameter and length to match specific project needs
Specialized Attachments : Custom attachments for unique drilling requirements

Specification

Spec	Unit	Prameter
The weight	T	13
The hole diameter	mm	140-400
Drilling depth	m	680
One-time advance length	m	6.6
Walking speed	km/h	2.5
Climbing angles	Max.	30
Equipped capacitor	kW	153
Using air pressure	MPa	1.7-3.5
Air consumption	m³/min	17-42
Swing speed	RPM	45-140
The penetration efficienc	m/h	15-35
Drill pipe diameter	m	102, 108, 114
Drill pipe length	m	1.5, 2.0, 3.0, 6.0
Rig lifting force	T	30
Rapid rise speed	m/min	20
Fast feeding speed	m/min	40
Width of loading	m	2..95
Hoisting force of winch	T	2
Swing torque	N.m	8850-13150
Dimension	mm	6300x2300x2650
Equipped with hammer		Medium and high wind pressure series
High leg strok	m	1.7
The engine brand		Cummins engine
Note: The engine can be customized

Usage Guidelines

Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage

Application Range

Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects

Contact Us

For inquiries or additional information on the DTH Crawler-Mounted Water Well Drilling Rig or other products, reach out to our professional sales team.
