  • TSH-800 Crawler Mounted Water Well Drilling Rig

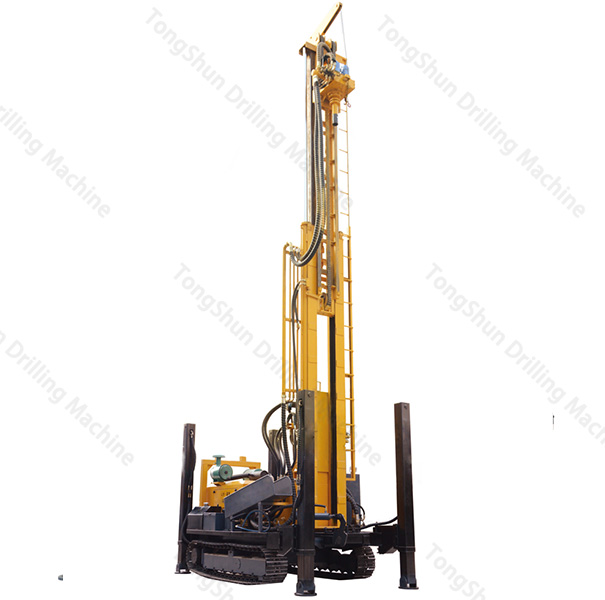

TSH-800 Crawler Mounted Water Well Drilling Rig

Share

Product Features

  • Versatile Drilling Capability: Drilling diameter range 140-400mm.

  • Enhanced Efficiency: Drilling depth 800m; Penetration efficiency 15-35m/h.

  • Adaptive Specifications: Drill pipe diameter  102mm, 108mm, 114mm, 117mm; Length  1.5m, 2.0m, 3.0m, 6.0m.


Main specifications

Equipped capacitor

194kW

Using air pressure

1.7-3.5MPa

Walking speed

2.5km/h

Dimension

6300x2300x2650mm

Climbing angles

30Max.

Swing torque

9000-14000N.m

Rig lifting force

36T

Air consumption

17-42m³/min

Fast feeding speed

40m/min


Customization Services

  • Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.

  • Specialized Attachments: Custom attachments for unique drilling requirements.



Spec

UnitPrameter
The weight

T

13

The hole diameter

mm

140-400
Drilling depthm

800

One-time advance length

m

6.6

Walking speed

km/h

2.5

Climbing angles

Max.

30

Equipped capacitor

kW194

Using air pressure

MPa

1.7-3.5

Air consumptionm³/min17-42

Swing speed

RPM

45-140

The penetration efficienc

m/h

15-35

Drill pipe diameter

m102, 108, 114, 117

Drill pipe length

m1.5,  2.0,  3.0, 6.0

Rig lifting force

T26

Rapid rise speed

m/min

20

Fast feeding speed

m/min40

Width of loading

m

2.95

Hoisting force of winc

T2

Swing torque

N.m

9000-14000

Dimension

mm

6300x2300x2650

Equipped with hammer


Medium and high wind pressure series

High leg strok

m

1.7

The engine brand


Cummins engine

Note: The engine can be customized


Usage Guidelines

  • Operational Manual: Refer to the manual for proper usage and safety precautions.

  • Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.

  • Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage

Application Range

  • Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development

  • Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects
