Versatile Drilling Capability: Drilling diameter range 105-350mm
Enhanced Efficiency: Drilling depth 400m; Penetration efficiency 10-35m/h
Adaptive Specifications: Drill pipe diameter 89mm, 102mm; Length 3.0m, 4.0m, 6.0m
Main specifications
| Equipped capacitor | 92kW |
| Using air pressure | 1.05-3.45Mpa |
| Walking speed | 3.5 km/h |
| Dimension | 5700×2000×2550 |
| Climbing angles | 30Max. |
| Swing torque | 8500-10500 N.m |
| Rig lifting force | 24T |
| Air consumption | 16-55 m³/min |
| Fast feeding speed | 40m/min |
Customization Services
Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.
Specialized Attachments:Custom attachments for unique drilling requirements.
Spec | Unit | Prameter |
| The weight | T | 10 |
The hole diameter | mm | 105-300 |
| Drilling depth | m | 400 |
One-time advance length | m | 6.6 |
Walking speed | km/h | 3.5 |
Climbing angles | Max. | 30 |
Equipped capacitor | kW | 92 |
Using air pressure | MPa | 1.05-3.45 |
| Air consumption | m³/min | 16-55 |
Swing speed | RPM | 45-120 |
The penetration efficienc | m/h | 10-35 |
Drill pipe diameter | m | 89, 102 |
Drill pipe length | m | 3.0, 4.5, 6.0 |
Rig lifting force | T | 24 |
Rapid rise speed | m/min | 20 |
Fast feeding speed | m/min | 40 |
Swing torque | N.m | 6500-9000 |
Dimension | mm | 5900×2100×2850 |
Equipped with hammer | Medium and high wind pressure series | |
| Note: The engine can be customized | ||
Usage Guidelines
Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage
Application Range
Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
The rig is designed to handle various ground conditions, making it suitable for exploring aquifers and locating optimal groundwater sources. Capable of drilling deep wells to access groundwater reservoirs, ensuring reliable water supply for agricultural, industrial, and residential needs.Equipped with advanced drilling technology for accurate well placement and extraction, maximizing water yield while minimizing environmental impact. Optimized for continuous operation, our rig enhances productivity in groundwater development projects, meeting deadlines and project milestones effectively. Ideal for foundation engineering and water resource projects, our crawler-mounted water well drilling rig provides essential support in constructing solid foundations and managing water resources efficiently.
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects
Enables the drilling of boreholes for soil investigation and foundation testing, ensuring the stability and safety of construction projects.Facilitates the installation of water wells for construction site water supply, dust suppression, and other construction-related water needs. Mounted on a crawler chassis, the rig navigates various terrains with ease, reaching remote construction sites and water resource locations. Built for durability and reliability, our rig operates consistently in demanding construction environments, contributing to project success and efficiency.

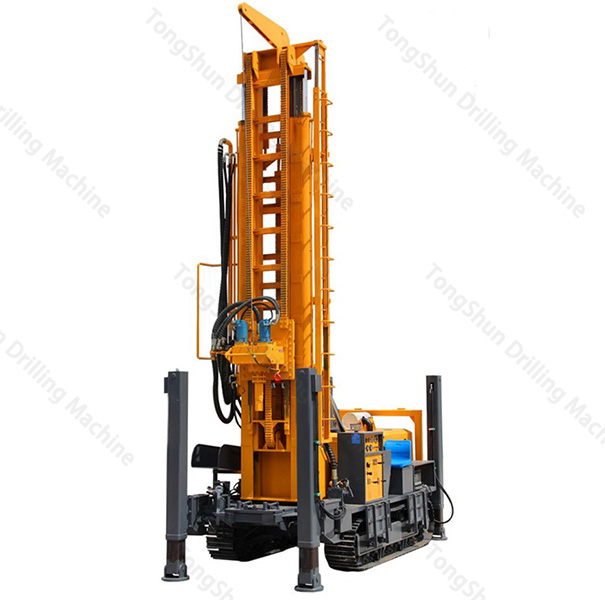

For inquiries or additional information on the DTH Crawler-Mounted Water Well Drilling Rig or other products, reach out to our professional sales team.
