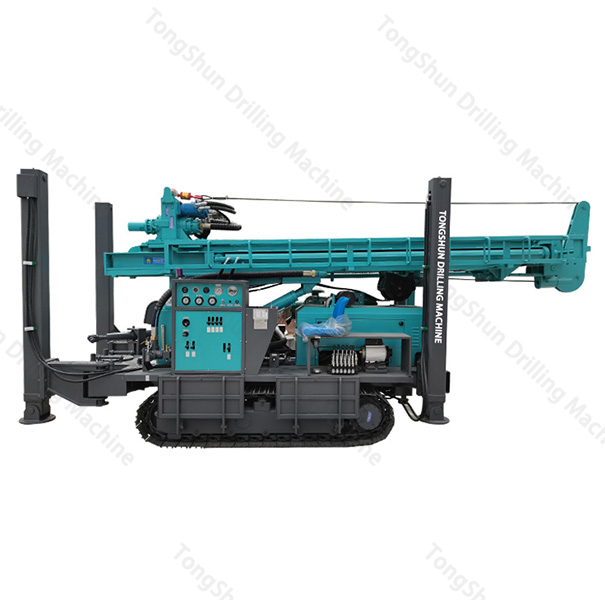

TSH-380 Crawler Mounted Water Well Drilling Rig

TSH-380 Crawler Mounted Water Well Drilling Rig

Inquire Now Next Product

Description

Product Features

Versatile Drilling Capability: Drilling diameter range 140-325mm.
Enhanced Efficiency: Drilling depth 380m; Penetration efficiency 15-35m/h.
Adaptive Specifications: Drill pipe diameter 89mm, 102mm; Length 1.5m, 2.0m, 3.0m, 6.0m.

Main specifications

Equipped capacitor	96kW
Using air pressure	1.7-3.4MPa
Walking speed	2.5km/h
Dimension	5950x2100×2550mm
Climbing angles	30Max.
Swing torque	6500-9000N.m
Rig lifting force	24T
Air consumption	17-36m³/min
Fast feeding speed	40m/min

Customization Services

Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.
Specialized Attachments: Custom attachments for unique drilling requirements.

A crawler-mounted water well drilling rig, also known as a crawler drill machine, is a robust piece of equipment used extensively in the exploration and extraction of groundwater. These rigs are equipped with powerful drilling tools and mounted on tracks (crawlers) for enhanced mobility over various terrains. They excel in penetrating diverse soil and rock formations to create boreholes that access underground water reservoirs. This versatility makes them indispensable for agricultural, industrial, and residential water supply projects, where reliable water sources are crucial for sustainable development and community welfare.

Specification

Spec	Unit	Prameter
The weight	T	9.2
The hole diameter	mm	140-325
Drilling depth	m	380
One-time advance length	m	6.6
Walking speed	km/h	2.5
Climbing angles	Max.	30
Equipped capacitor	kW	96
Using air pressure	MPa	1.7-3.4
Air consumption	m³/min	17-36
Swing speed	RPM	66-135
The penetration efficienc	m/h	15-35
Drill pipe diameter	m	89， 102
Drill pipe length	m	1.5, 2.0, 3.0, 6.0
Rig lifting force	T	24
Rapid rise speed	m/min	20
Fast feeding speed	m/min	40
Width of loading	m	2.8
Swing torque	N.m	6500-9000
Dimension	mm	5950x2100×2550
Equipped with hammer		Medium and high wind pressure series
High leg strok	m	1.6
The engine brand		Yu chai engine National III
Note: The engine can be customized

Usage Guidelines

Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage.

Application Range

Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development.
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects .

Contact Us

For inquiries or additional information on the DTH Crawler-Mounted Water Well Drilling Rig or other products, reach out to our professional sales team.Please contact us!
