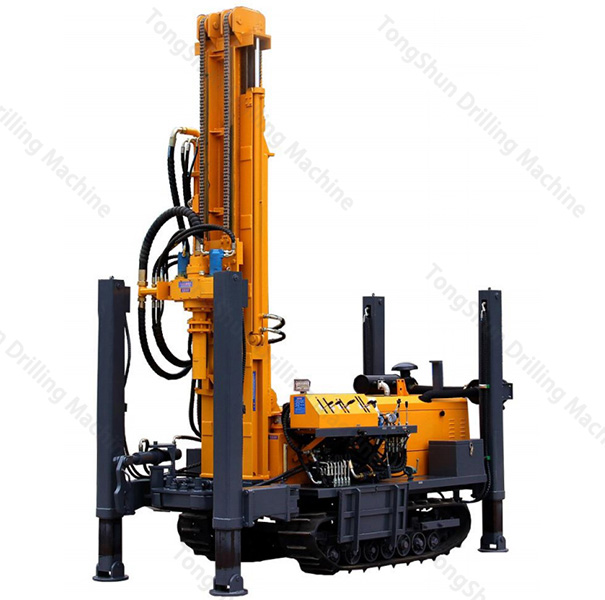

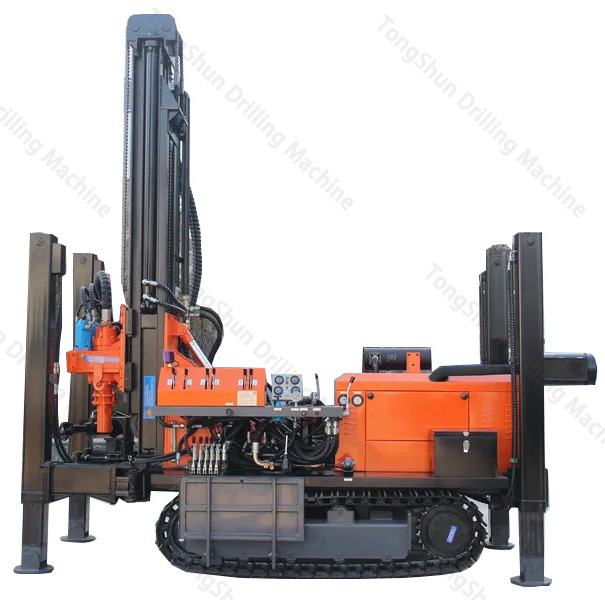

TSH-180R Crawler Mounted Water Well Drilling Rig

TSH-180R Crawler Mounted Water Well Drilling Rig

Inquire Now Next Product

Description

Product Features

Versatile Drilling Capability: Drilling diameter range 140-254mm.
Enhanced Efficiency: Drilling depth 180m; Penetration efficiency 10-35m/h.
Adaptive Specifications : Drill pipe diameter 76mm, 89mm; Length 1.5m, 2.0m, 3.0m.

Main specifications

55Equipped capacitor	55kW
Using air pressure	1.7-2.5MPa
Walking speed	2.5km/h
Dimension	3950×1630×2250mm
Climbing angles	30Max
Swing torque	3200-4600N.m
Rig lifting force	12
Air consumption	17-31m³/min
Fast feeding speed	40m/min

Customization Services

Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.
Specialized Attachments: Custom attachments for unique drilling requirements.

Specification

Spec	Unit	Prameter
The weight	T	4.5
The hole diameter	mm	140-254
Drilling depth	m	180
One-time advance length	m	3.3
Walking speed	km/h	2.5
Climbing angles	Max.	30
Equipped capacitor	kW	55
Using air pressure	MPa	1.7-2.5
Air consumption	m³/min	17-31
Swing speed	RPM	45-70
The penetration efficienc	m/h	10-35
Drill pipe diameter	m	76, 89
Drill pipe length	m	1.5, 2, 3
Rig lifting force	T	12
Rapid rise speed	m/min	20
Fast feeding speed	m/min	40
Width of loading	m	2.4
Swing torque	N.m	3200-4600
Dimension	mm	3950×1630×2250
Equipped with hammer		Medium and high wind pressure series
High leg strok	m	1.4
The engine brand		Quan chai engine
Note: The engine can be customized

Usage Guidelines

Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage.

Application Range

Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects
