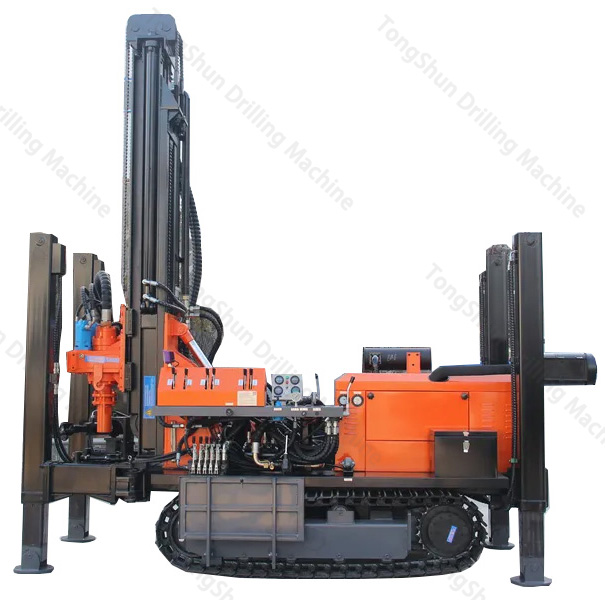

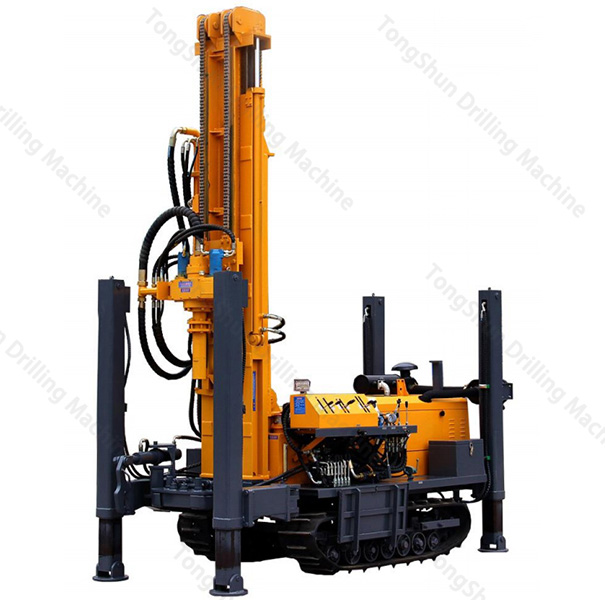

TSH-180S Rubber Crawler Monunted Water Well Drilling Rig

TSH-180S Rubber Crawler Monunted Water Well Drilling Rig

Inquire Now None

Description

Product Overview

The DTH Crawler-Mounted Water Well Drilling Rig stands as an advanced solution designed explicitly for groundwater exploration and mine excavation. With exceptional drilling depth and efficiency, it serves as a versatile asset across geological explorations, construction projects, and water resource applications.

Main specifications

The hole diamete	140-254mm
Drilling depth	180m
The weight	5.2T
Rig lifting force	12T
The penetration efficiency	10-35m/h
The engine brand	Yuchai engine

Product Features

Versatile Drilling Capabilities: Accommodates a wide hole diameter range catering to diverse geological requirements.

Efficiency and Stability: Ensures rapid, precise drilling, guaranteeing operational efficiency and stable performance.

Adaptable Drill Pipe Range: Compatibility with varied drill pipe diameters and lengths for flexible drilling solutions.

Powerful and Adaptive: Robust power output and higher climbing angles adapt seamlessly to intricate terrains.

Specification

Spec	Unit	Prameter
The weight	T	5.2
The hole diameter	mm	140-254
Drilling depth	m	180
One-time advance length	m	3.3
Walking speed	km/h	2.5
Climbing angles	Max.	30
Equipped capacitor	kW	60
Using air pressure	MPa	1.7-2.5
Air consumption	m³/min	17-31
Swing speed	RPM	45-70
The penetration efficienc	m/h	10-35
Drill pipe diameter	mm	76, 89
Drill pipe length	m	1.5, 2, 3
Rig lifting force	T	12
Rapid rise speed	m/min	20
Fast feeding speed	m/min	40
Width of loading	m	2.4
Swing torque	N.m	3200-4600
Dimension	mm	4000×1630×2250
Equipped with hammer		Medium and high wind pressure series
High leg strok	m	1.4
The engine brand		Yu chai engine
Note: The engine can be customized

Applications

Groundwater Exploration and Extraction: Offers efficient drilling services for underground water resource development.
Construction Projects and Water Resources: Applicable in foundation engineering and water resource projects.

Quality Assurance

Advanced Manufacturing Techniques: Implements high-standard manufacturing and stringent quality control processes for product stability and reliability.

Contact Us

For inquiries or additional information on the DTH Crawler-Mounted Water Well Drilling Rig or other products, reach out to our professional sales team.
