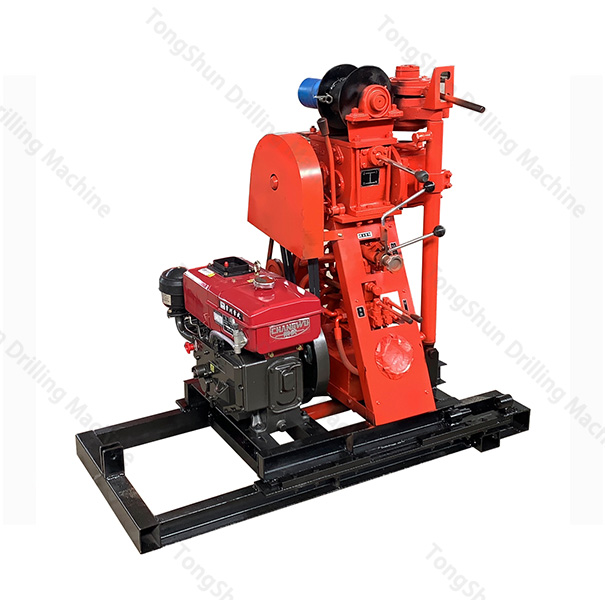

The YT-50 water well drilling rig is a high-performance and versatile equipment designed for various water well drilling tasks.
Key Advantages
Flexible Drilling Capability: Covering drilling depths of up to 50m and diameters ranging from 90mm to 150mm, it performs exceptionally across diverse geological conditions.
User-Friendly Operation: Featuring a user-friendly interface suitable for operators of various skill levels, simplifying workflow.
Multi-functionality: Designed to be multi-functional, adapting to different project requirements, offering versatile choices.
Application Scope
Small-Scale Water Well Drilling: Ideal for household, agricultural, and light engineering projects
Geological Surveys: Conducting surveys and assessments of underground geological structures
Spec | Unit | Prameter |
Size | 50YT | |
Drilling Depth | mm | 50 |
Open Hole Diameter | mm | 75-108 |
Weight | kg | 260 |
Dimension (L*W*H) | mm | 1400*680*1230 |
Cylinder Stroke | mm | 600 |
Drill Rod Size | mm | 42 |
Spindle Speed(1-3 level) | RPM | 70-650 |
Reverse speed(R level) | RPM | 50-130 |
Power | R180 Diesel Engine | |
Move Stroke | mm | 200 |
Hoist Lifting | kg | 500 |
After-sales Service
We provide professional technical support and comprehensive after-sales service to ensure efficient completion of drilling tasks.
Conclusion
The YT-50 water well drilling rig is an ideal choice due to its multifunctionality, efficiency, and stability, catering to various water well drilling tasks. Contact us to discover more about how this product meets your specific needs.
