Key Advantages
Stable Drilling Performance: Covering drilling depths of up to 200m and diameters ranging from 75mm to 300mm, it offers stable and reliable drilling capabilities.
User-Friendly Operation: Equipped with a user-friendly interface suitable for operators of varying experience levels, enhancing overall work efficiency.
Durability: Structurally designed for durability, ensuring prolonged usage across different geological conditions.
Application Scope
Small-Scale Water Well Drilling: Ideal for household, agricultural, and light engineering projects.
Geological Surveys: Conducting measurements and surveys of underground geological structures.
Item | Spec | Unit | Prameter |
Drilling Machine | Borehole diameter | mm | 75-300 |
Drilling depth | m | 50-200 | |
Drill pipe diameter | mm | 42, 50 | |
Angle range | 75-90 | ||
Dimensions(L*W*H) | mm | 1433*697*1273 | |
Weight(without power unit) | kg | 525 | |
Swivel Head | Spindle speed (four speed) | r/min | 71,142,310,620 |
Spindle stroke | mm | 450 | |
Upward displacement speed of drilling vertical spindle | m/s | 0.05 | |
Downward displacement speed of drilling vertical spindle | m/s | 0.067 | |
Spindle pull-down max | kN | 15 | |
Spindle lifting capacity max | kN | 25 | |
Spindle lifting capacity ma | kN.m | 1.25 | |
Hoist | Max lifting capacity (single rope) | kN | 15 |
Lifting rotating speed | r/min | 19, 38, 84, 168 | |
Hoisting drum linear velocity ( two levels) | m/s | 0.166, 0.331 ,0.733, 1.466 | |
Drum diameter | mm | 140 | |
Wire rope diamete | mm | 9.3 | |
Wire rope capacity | m | 35 | |
Brake diamete | m | 252 | |
Brake belt width | mm | 50 | |
Gear Pum | Model | YBC-12/12 | |
Rated pressure | MPa | 12.5 | |
Displacement | ml/r | 12 | |
Rated speed | r/min | 2000 | |
Motor | Model | Y160-4 | |
Rated power | kW | 11 | |
Rated speed | r/min | 1460 |
After-sales Service
Comprehensive technical support and top-quality after-sales service are provided to ensure efficient drilling task completion.
Conclusion

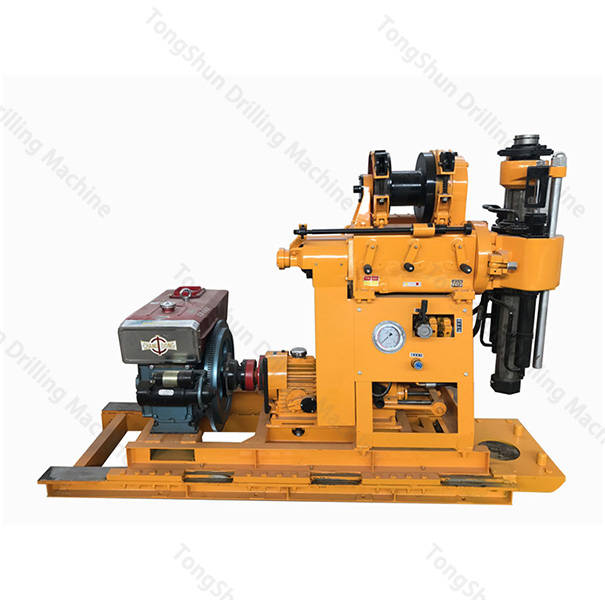

The XY-1B water well drilling rig offers stability, durability, and efficiency, making it a reliable choice for small to medium-scale projects. Contact us to learn more about how this product meets your needs.
