Versatile Drilling Capability: Drilling diameter range 140-305mm
Enhanced Efficiency: Drilling depth 280m; Penetration efficiency 15-35m/h
Adaptive Specifications: Drill pipe diameter 76mm, 89mm; Length 1.5m, 2.0m, 3.0m
Main specifications
Equipped capacitor | 75kW |
Using air pressure | 1.7-3.0MPa |
Walking speed | 2.5km/h |
Dimension | 5900×1850x2360mm |
Climbing angles | 30Max. |
Swing torque | 4500-6000N.m |
Rig lifting force | 17T |
Air consumption | 17-31m³/min |
Fast feeding speed | 30m/min |
Customization Services
Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs
Specialized Attachments: Custom attachments for unique drilling requirements
Spec | Unit | Prameter |
The weight | T | 7.6 |
The hole diameter | mm | 140-305 |
Drilling depth | m | 280 |
One-time advance length | m | 6.6 |
Walking speed | km/h | 2.5 |
Climbing angles | Max. | 30 |
Equipped capacitor | kW | 75 |
Using air pressure | MPa | 1.7-3.0 |
Air consumption | m³/min | 17-31 |
Swing speed | RPM | 45-70 |
The penetration efficienc | m/h | 15-35 |
Drill pipe diameter | m | 76, 89 |
Drill pipe length | m | 1.5, 2.0, 3.0 |
Rig lifting force | T | 17 |
Rapid rise speed | m/min | 20 |
Fast feeding speed | m/min | 40 |
Width of loading | m | 2.7 |
Hoisting fore of winch | T | 2 |
Swing torque | N.m | 4500-6000 |
Dimension | mm | 5900×1850x2360 |
Equipped with hammer | Medium and high wind pressure series | |
High leg strok | m | 1.4 |
The engine brand | Yu chai engine | |
Note: The engine can be customized |
Usage Guidelines
Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage
Application Range
Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects

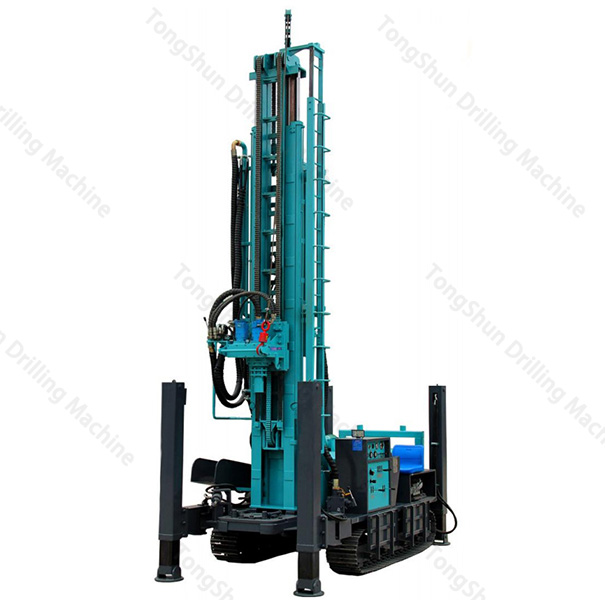

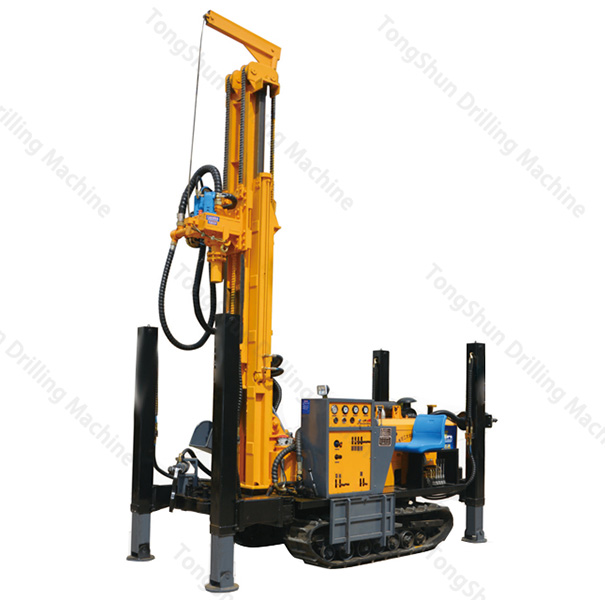

For inquiries or additional information on the DTH Crawler-Mounted Water Well Drilling Rig or other products, reach out to our professional sales team.
