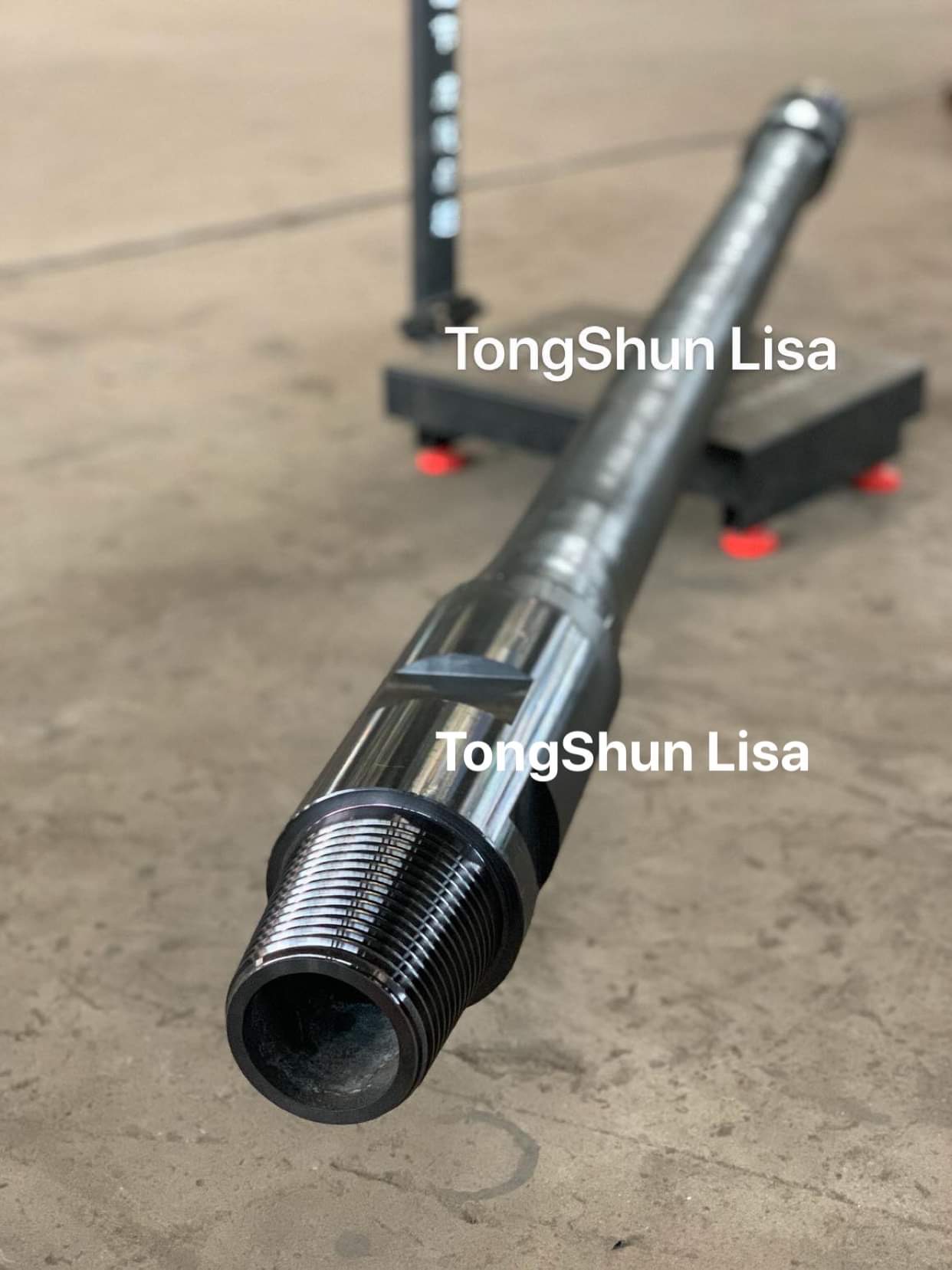

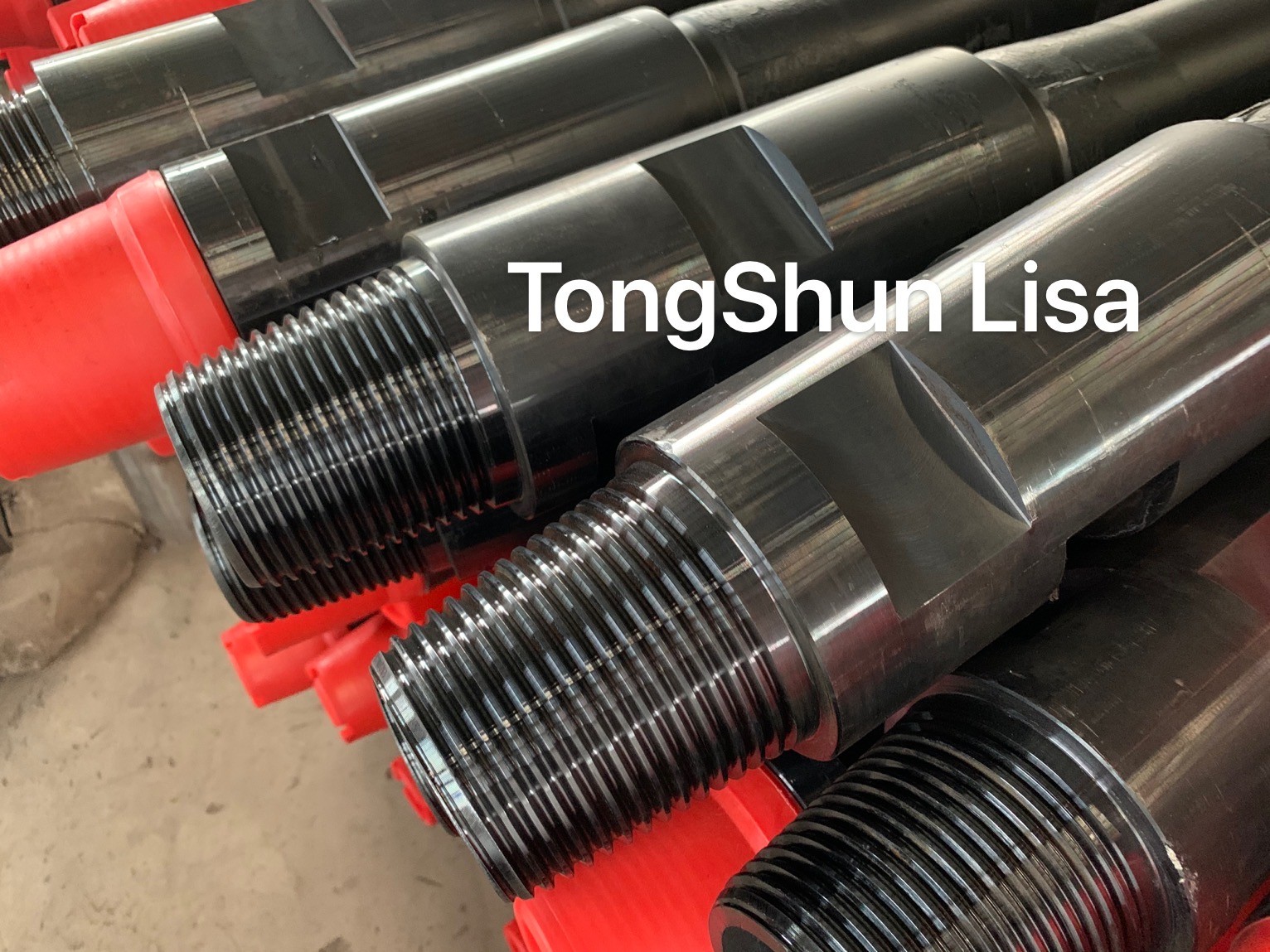

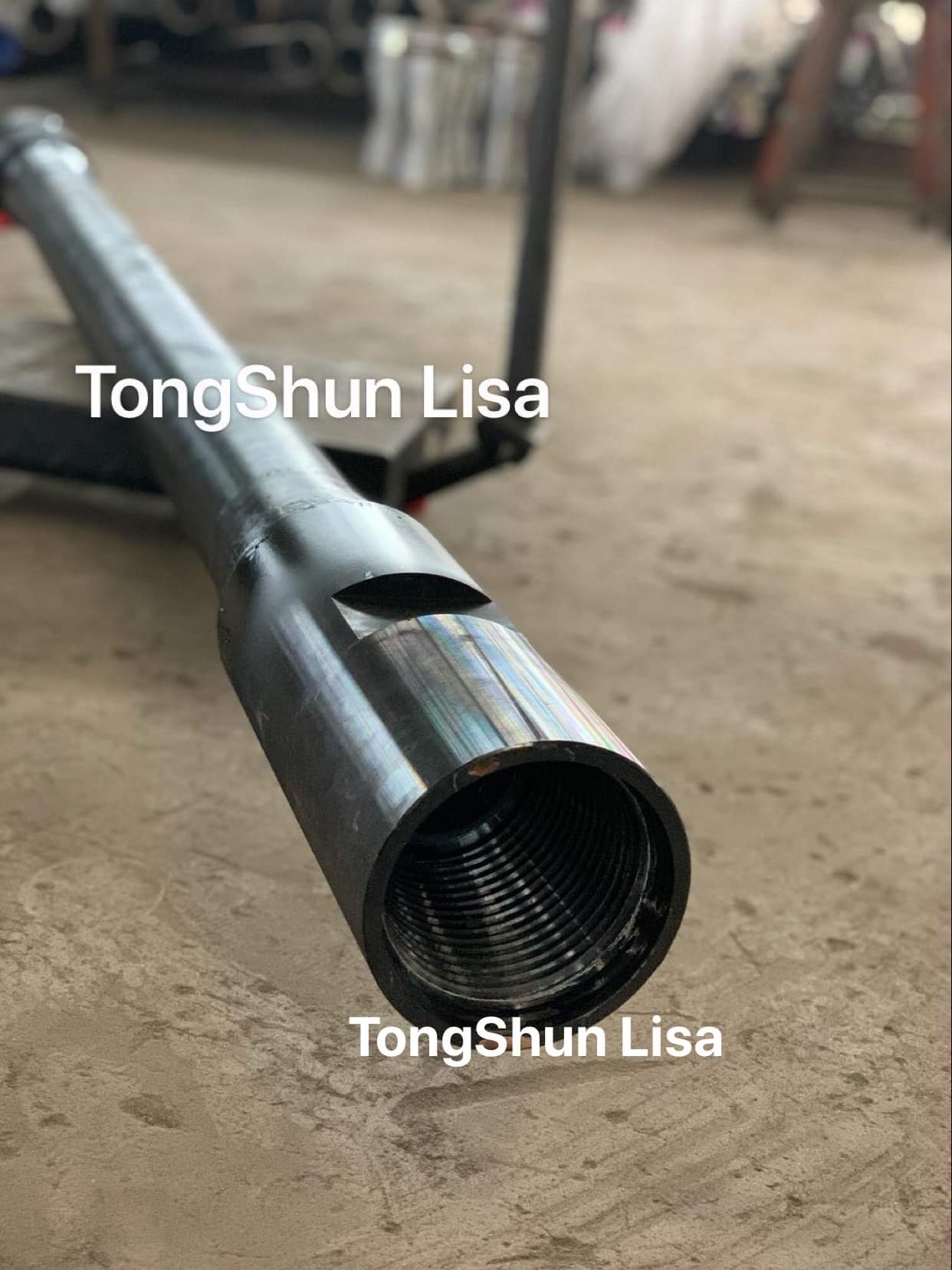

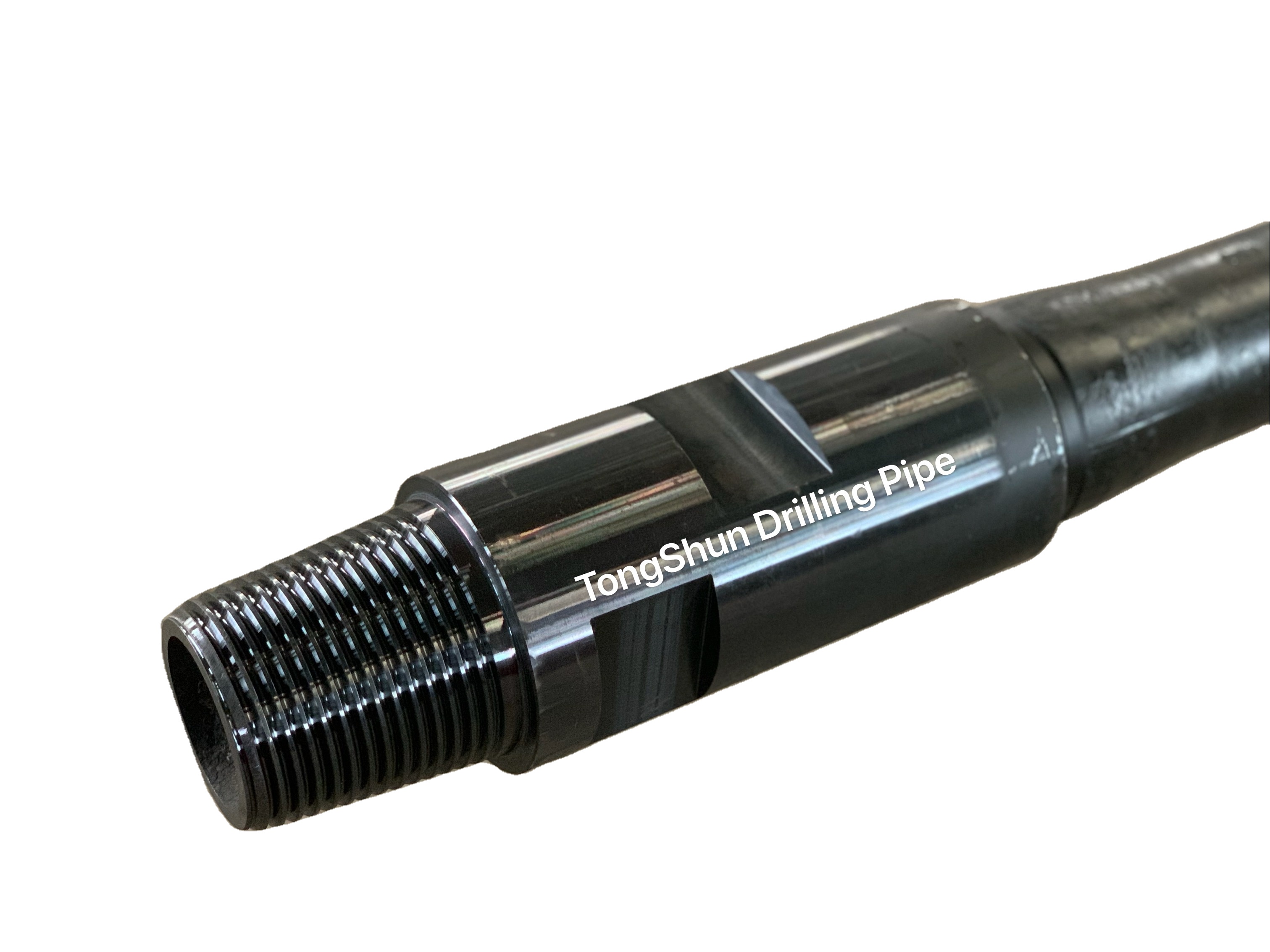

89mm Water Well Drill Pipe API Thread
Inquire Now
None
Specification:
Pipe OD: 3 1/2" (89mm);
Pipe Body Wall Thickness: 10mm
Total Length 2.1m;
Tool Joint OD: 121mm
Tool Joint ID: 65mm(PIN and BOX same);
Thread: API NC38 (3 1/2"IF);
Connect: Thread Connect;
Weight: 60kg/pcs or 62kg/pcs
OD | 2-3/8'' | 2-7/8'' | 3-1/2'' | 4" | 5'' |
Wall Thickness (mm) | 7.11 | 9.19 | 9.35/9.5/11.40 | 8.38 | 9.35 |
Steel Grade | E75 X95 G105 S135 R780 | ||||
Upset style | IU EU IEU | ||||
Hard banding | ARNCO 100XT, ARNCO 300XT, ARMACOR-M, TCS-Ti, TCS-8000 | ||||
Length | R1:6.1-7.01m; R2:8.84-9.75m; R3:12.19-13.72m | ||||
Connection | RSC: NC26, NC31, NC38, NC40, NC46, NC50, etc. (NC, XH, IF, REG, FH, etc.) | ||||
Customized specifications can be manufactured according to drawings. | |||||
1.Drill Pipe
| OD | Grade | Weight Designation | Wall Thickness | Upset Type | Connection Type | Standard | ||||
| inch | mm | lb/ft | kg/m | inch | mm | OD | Thread | |||
| 3-1/2" | 88.9 | E,X,G,S | 13.3 | 19.8 | 0.37 | 9.5 | IE | 121mm | NC38 | API |
| UE | 127mm | |||||||||
2.Drill Pipe Mechanical properties
89mm Drill Pipe Testing
♦ Drill pipe quality control:
1.Before order to be confirmed, the raw material of rod and tool joint body should be booked from famous big steel enterprises in China.
2.Strictly according to ISO-9001 standard and checked by our QC staff and factory own laboratory.
3.Every drill pipe has nondestructive inspection , cleaned and breach oil before packing.
4.TongShun cares for you though reliable sales management as long as you own our products.

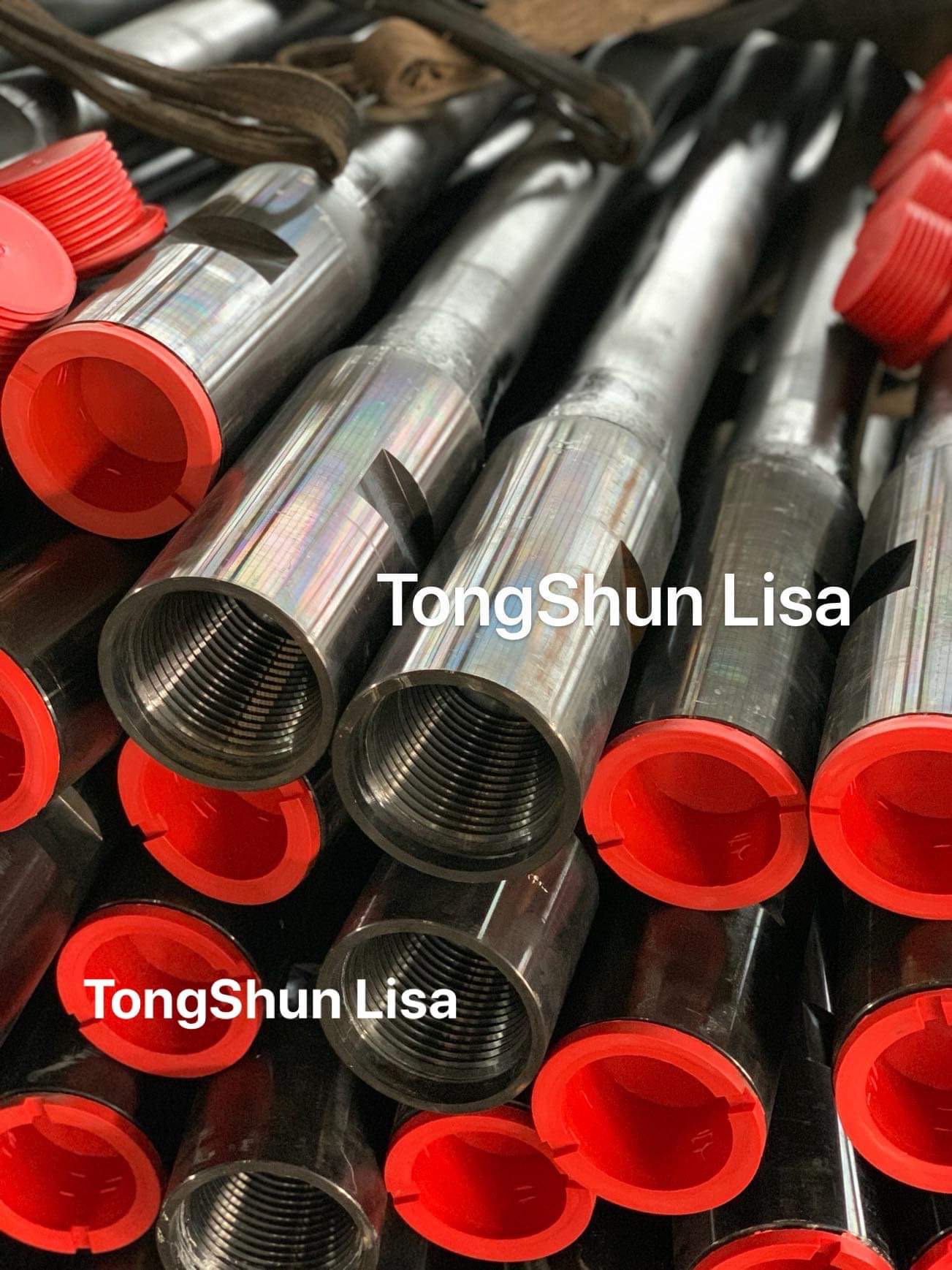

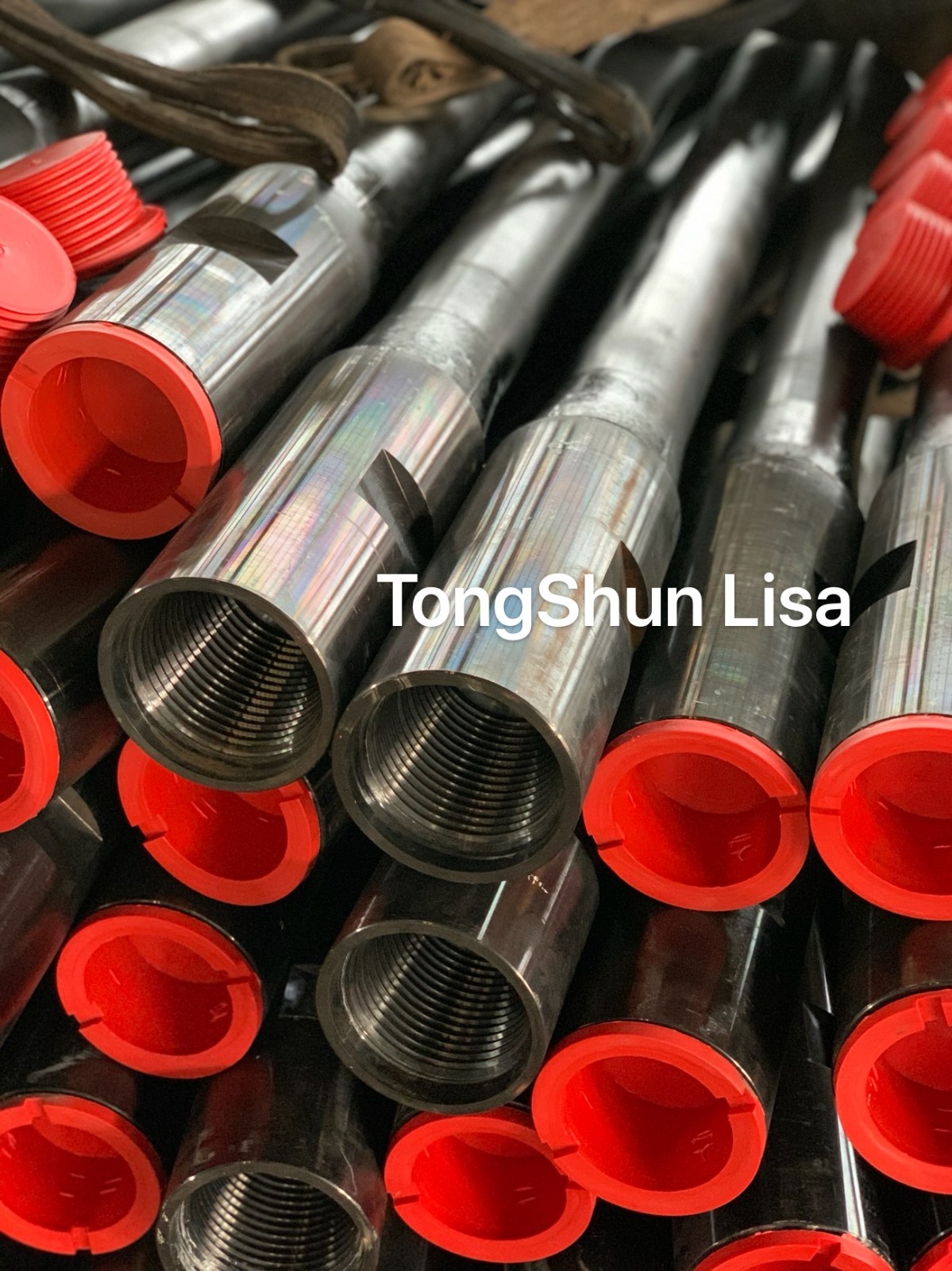

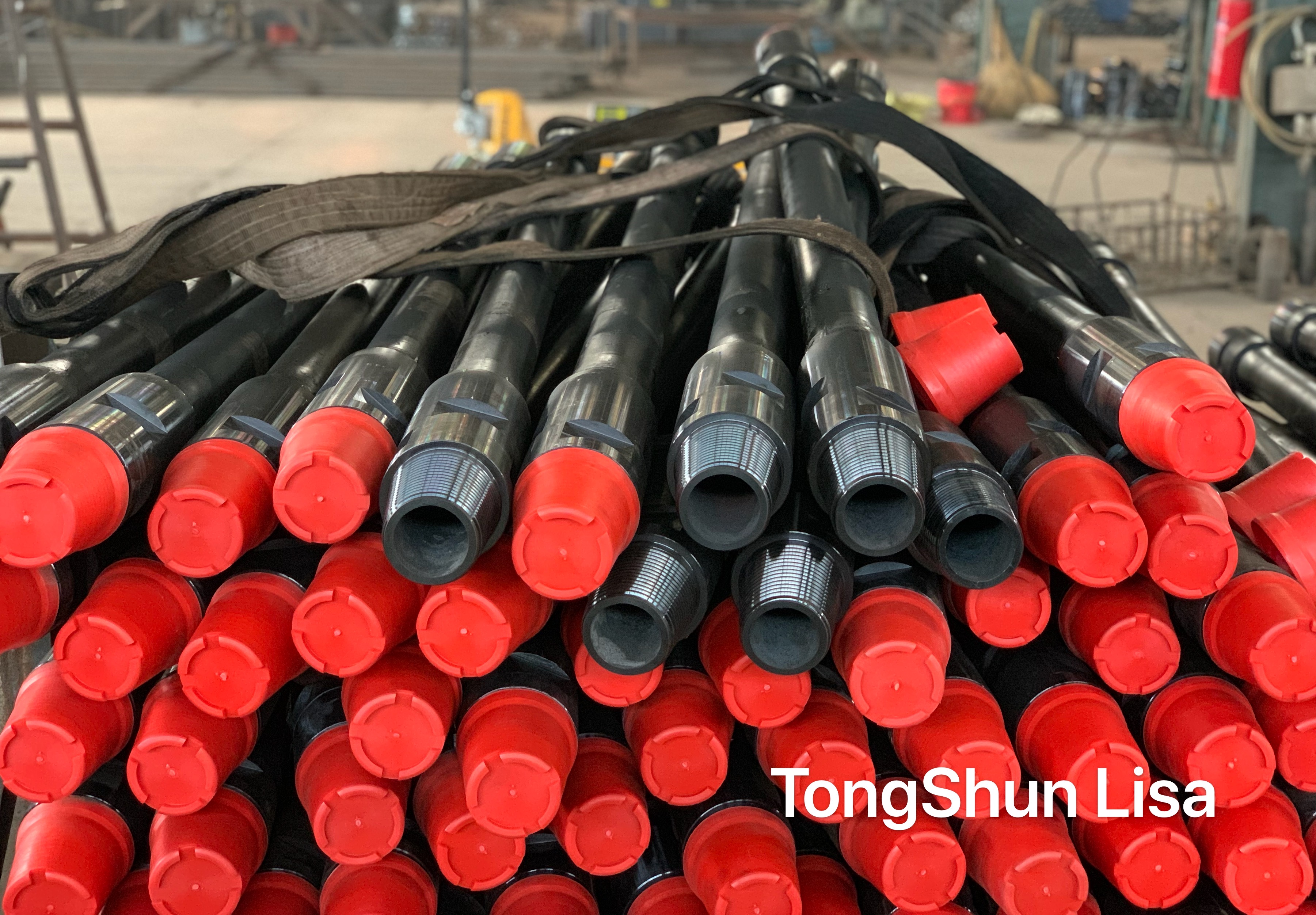

Thread Drill Pipe Packing and Loading Pictures
Welcome you inquiry us.
