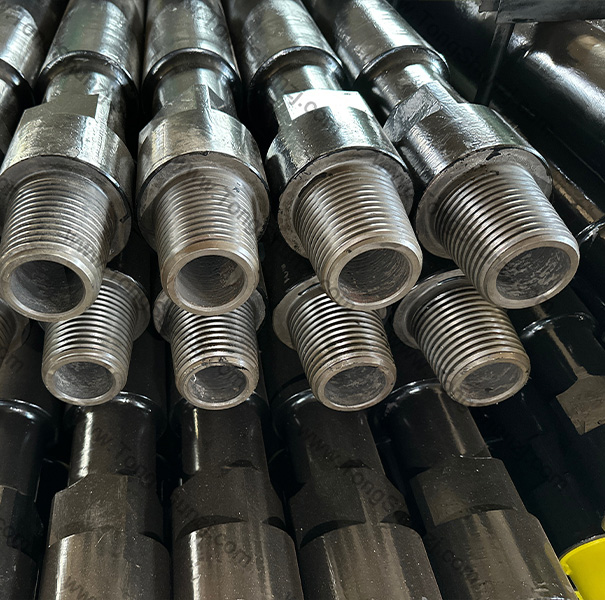

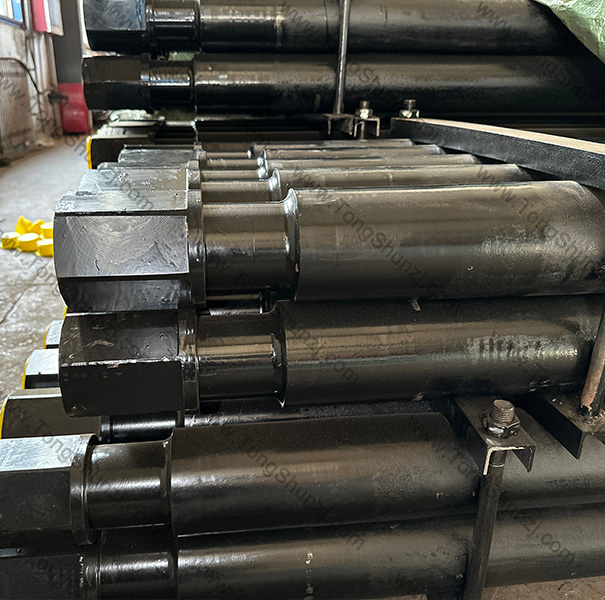

The 5-inch T4W Water Well Drill Pipe is a specialized tool designed for water well drilling operations. Engineered to deliver stable and efficient drilling performance, this drill pipe is renowned for its exceptional strength, durability, and reliability across various geological conditions. It plays a crucial role in the construction of water wells, ensuring optimal extraction of groundwater resources.
High-Quality Steel: Constructed from high-strength steel alloys, the T4W drill pipe offers superior resistance against wear and corrosion, making it suitable for prolonged use in challenging environments.
Advanced Manufacturing Processes: Utilizing state-of-the-art manufacturing techniques, each pipe undergoes rigorous quality control checks to ensure compliance with international standards. This includes precision threading, heat treatment for enhanced durability, and seamless welding for robust connections.
Optimized Wall Thickness: The wall thickness of the 5-inch T4W drill pipe is carefully optimized to provide maximum strength while minimizing weight, facilitating easier handling during installation and maintenance.
Corrosion Resistance Coating: To withstand corrosive elements found in groundwater and soil, the pipes are often coated with protective layers that enhance their longevity and performance.
Enhanced Connections: Featuring reinforced thread designs, these drill pipes ensure secure and reliable connections even under high-pressure conditions, reducing the risk of leaks or failures.
Adaptability: Suitable for both vertical and directional drilling applications, the 5-inch T4W drill pipe can be used in a wide range of projects including municipal water supply systems, agricultural irrigation, and industrial water sourcing.
Efficiency: Designed to optimize drilling efficiency, the T4W drill pipe minimizes downtime and maximizes productivity, contributing to cost-effective water well construction.
Sustainability: By providing reliable access to clean water sources, the use of T4W drill pipes supports sustainable development efforts and helps mitigate the impacts of water scarcity in various regions.
Minimal Footprint: The efficient design of these drill pipes reduces the environmental footprint associated with water well drilling operations, promoting eco-friendly practices in resource extraction.
In summary, the 5-inch T4W Water Well Drill Pipe represents a pinnacle of engineering excellence tailored for dependable water extraction. Its robust design, coupled with advanced material science and manufacturing processes, ensures it meets the stringent demands of modern water well drilling. Whether for residential, commercial, or industrial applications, the T4W drill pipe stands as a cornerstone in achieving efficient and sustainable groundwater solutions.

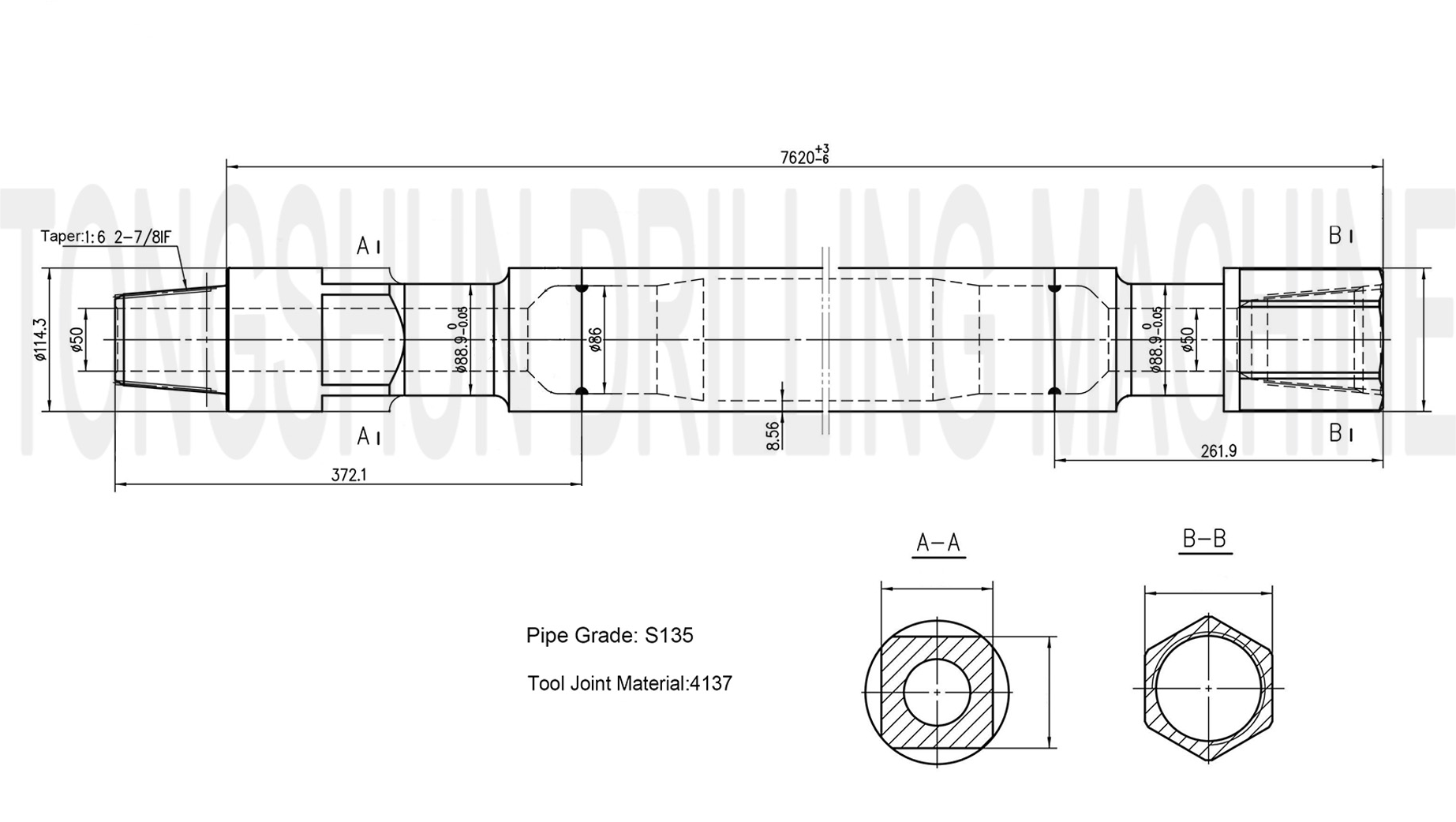

| Diameter | 5 inch (127mm) |
| Wall Thickness | 0.362 inch (9.19mm) |
| Length | 25ft(7620mm)/ 30ft(9100mm) |
| Tool Joint OD | 5 inch (127mm) |
| API Thread | NC38 |
| Steel Grade | S135 |
| Joint tool material | 42CrMo Nitriding |

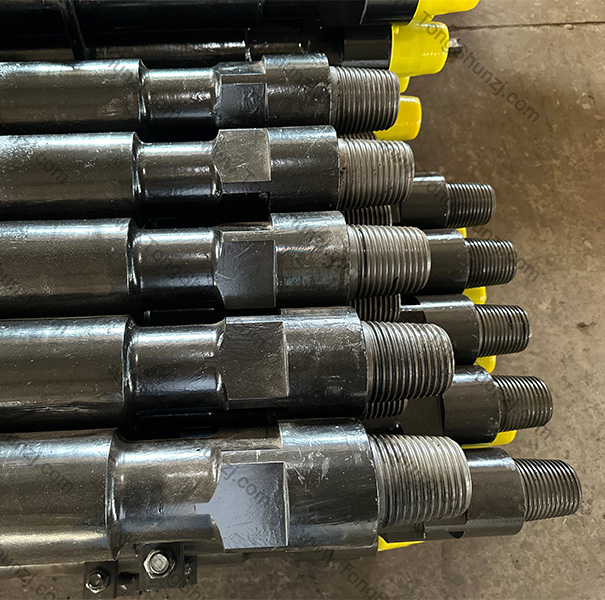

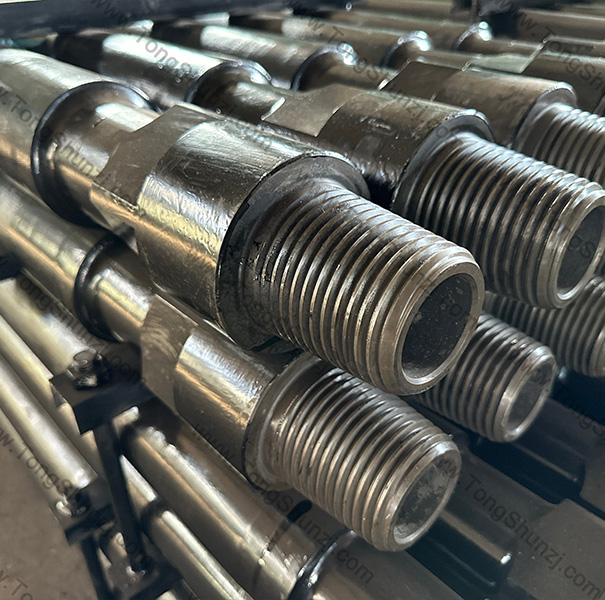

The Ingersoll Rand T4W drill rods are high-performance tools designed specifically for water well drilling. We employ top-quality materials and advanced processes to ensure drilling performance and durability.
High-Quality Materials: Manufactured using high-strength materials for durability and reliability.
Strong Adaptability: The T4W drill rods are suitable for water well drilling in various geological conditions, showcasing strong adaptability.
Efficient Drilling: Designed to enhance drilling efficiency, meeting the demands of deep well drilling.
Diameter | Wall Thickness | Length | Weight | Tool Joint OD | API Thread | Steel Grade | ||||
| (mm) | (inch) | (mm) | (inch) | (m) | (ft) | (kg) | (mm) | (inch) | ||
| 76 | 3" | 6.5 | 0.256 | 1.0 | 3 | 21.1 | 76 | 3" | 2 3/8" REG | R780 |
| 1.5 | 5 | 26.5 | ||||||||
| 2.0 | 6.5 | 32.0 | ||||||||
| 3.0 | 10 | 43.0 | ||||||||
| 89 | 3 1/2" | 8 | 0.315 | 2.0 | 6.5 | 47 | 89 | 3 1/2" | 2 3/8" REG or NC26 | R780 G105 S135 |
| 3.0 | 10 | 62 | ||||||||
| 4.5 | 15 | 87 | ||||||||
| 6.0 | 20 | 111 | ||||||||
| 102 | 4" | 8 | 0.315 | 2.0 | 6.5 | 55.08 | 102 | 4" | 2 7/8" REG or NC31 | R780 G105 S135 |
| 3.0 | 10 | 73.6 | ||||||||
| 4.5 | 15 | 101 | ||||||||
| 6.0 | 20 | 129 | ||||||||
| 114 | 4 1/2" | 8.56 | 0.337 | 3.0 | 10 | 88.9 | 114 | 4 1/2" | 3 1/2" REG or NC31 or NC35 | R780 G105 S135 |
| 4.5 | 15 | 122.4 | ||||||||
| 6.0 | 20 | 156 | ||||||||
| 127 | 5" | 9.19 | 0.362 | 3.0 | 10 | 105 | 127 | 5" | NC38 | R780 G105 S135 |
| 4.5 | 15 | 145 | ||||||||
| 6.0 | 20 | 185.2 | ||||||||
The Ingersoll Rand T4W drill rods finds its application in a wide array of drilling scenarios, including mining, construction, geothermal exploration, and quarrying. Its adaptability and robustness make it a reliable choice across industries.Water well drill pipes, also known as drill rods, are a crucial component in the drilling process. They connect the drill bit to the surface equipment, transmitting rotary motion and drilling fluid.
Please read the operational manual carefully before use.
Follow operational requirements and guidelines while using the drill pipe.
Maintain safety awareness during operations to ensure the safety of operating personnel.
Selecting the right drill pipe for water well drilling involves understanding the specific requirements of the project, including depth, geological conditions, and rig compatibility. Proper maintenance and handling are essential to maximize the lifespan and performance of the drill pipes, ensuring efficient and safe drilling operations. For inquiries or further information about our Ingersoll Rand T4W drill rods or other products, please contact our dedicated sales team.
