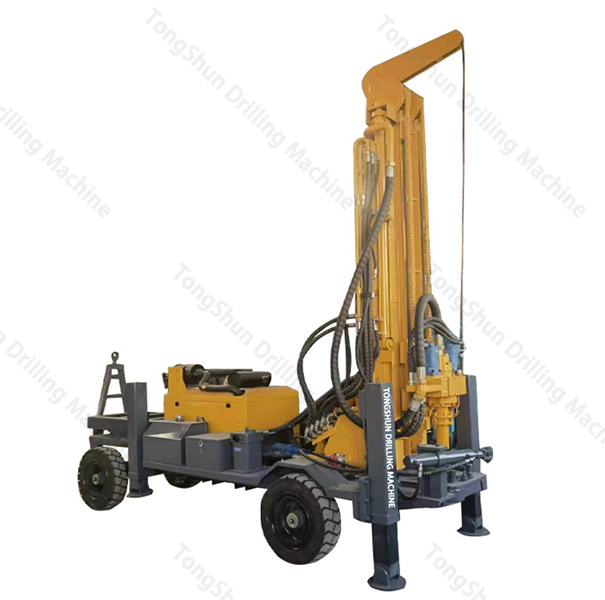

TSHT-400 Trailer Mounted Water Well Drilling Rig

TSHT-400 Trailer Mounted Water Well Drilling Rig

Inquire Now Next Product

Description

Our trailer-mounted water well drilling rig stands out for its portability and cost-effectiveness

Product Features

Versatile Drilling Capability: Drilling diameter range 140-325mm.

Enhanced Efficiency: Drilling depth 400m; Penetration efficiency 15-35m/h.

Adaptive Specifications: Drill pipe diameter 89mm, 102mm; Length 1.5m, 2.0m, 3.0m, 6.0m.

Portability Advantage: Suitable for various types of water well drilling tasks, from small domestic wells to agricultural and general engineering projects. Its lightweight and flexibility make transportation between different job sites effortless.

Cost-effectiveness: Our trailer-mounted water well drilling rig offers cost-effective solutions not only in its initial purchase but also in its operational costs, making it an economical choice.

Easy Maintenance: Apart from its high-performance capabilities, its simplified structural design also makes maintenance straightforward, thereby reducing maintenance costs.

Main specifications

Equipped capacitor	92kW
Using air pressure	1.7-3.4MPa
Dimension	500010002200mm
Climbing angles	30Max.
Swing torque	6200-8500N.m
Rig lifting force	22T
Air consumption	17-36m³/min
The engine bran	Yuchai engine

Customization Services

Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.
Specialized Attachments: Custom attachments for unique drilling requirements.

Specification

Spec	Unit	Prameter
The weight	T	7.5
The hole diameter	mm	140-325
Drilling depth	m	400
One-time advance length	m	6.6
Walking speed	km/h	80
Climbing angles	Max.	30
Equipped capacitor	kW	92
Using air pressure	MPa	1.7-3.4
Air consumption	m³/min	17-36
Swing speed	RPM	66-135
The penetration efficienc	m/h	15-35
Drill pipe diameter	m	89, 108
Drill pipe length	m	1.5, 2.0, 3.0, 6.0
Rig lifting force	T	22
Rapid rise speed	m/min	18
Fast feeding speed	m/min	33
Width of loading	m	2.7
Hoisting force of winch	T	2
Swing torque	N.m	6200-8500
Dimension	mm	500010002200
High leg stroke	m	1.4
The engine brand		Yuchai engine
Note: The engine can be customized

Usage Guidelines

Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage

Application Range

Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects

Contact Us

The trailer-mounted water well drilling rig offers a flexible and efficient solution. Contact us to learn more about how this product can meet the demands of your project.
