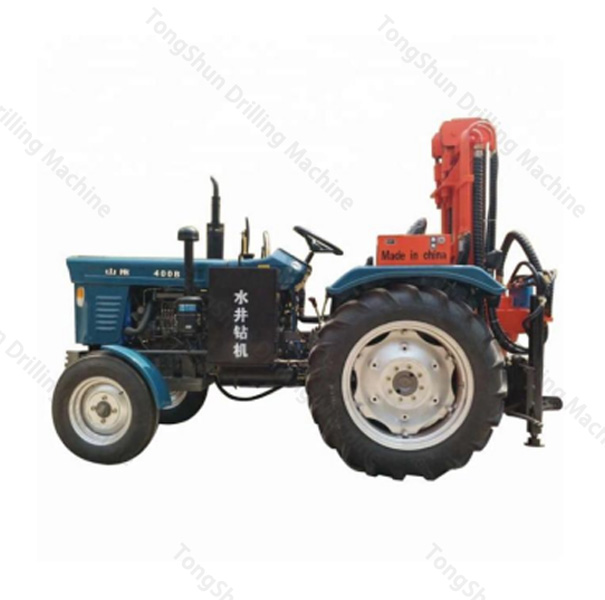

TSH-150 Tractor Mounted Water Well Drilling Rig

Inquire Now None

Description

Our tractor-mounted water well drilling rig stands out for its portability and cost-effectiveness

Versatile Drilling Capability: Drilling diameter range 115-202mm.
Enhanced Efficiency: Drilling depth 150m; Penetration efficiency 10-35m/h.
Adaptive Specifications: Drill pipe diameter 76mm; Length 1.5m, 2.0m.
Portability Advantage: Suitable for various types of water well drilling tasks, from small domestic wells to agricultural and general engineering projects. Its light weight and flexibility make transportation between different job sites effortless.
Cost-effectiveness: Our tractor-mounted water well drilling rig offers cost-effective solutions not only in its initial purchase but also in its operational costs, making it an economical choice.
Easy Maintenance: Apart from its high-performance capabilities, its simplified structural design also makes main tenance straight forward, there by reducing main tenance costs.

Main specifications

Customization Services

Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.
Specialized Attachments: Custom attachments for unique drilling requirements.

Specification

Spec	Unit	Prameter
The weight	T	4.65
The hole diameter	mm	115-202
Drilling depth	m	150
One-time advance length	m	3.3
Climbing angles	Max.	30
Equipped capacitor	kW	65
Using air pressure	MPa	1.05-2.46
Swing speed	RPM	67
The penetration efficienc	m/h	10-35
Drill pipe diameter	m	76
Drill pipe length	m	1.5, 2.0
Swing torque	N.m	4250
Dimension	mm	4100×1750×2300
Note: The engine can be customized

Usage Guidelines

Operational Manual: Refer to the manual for proper usage and safety precautions.
Compliance with Specifications: Adhere to recommended drill pipe specifications and operational guidelines.
Safety Awareness: Maintain safety protocols and ensure personnel safety throughout usage

Application Range

Groundwater Exploration and Extractio: Efficient drilling services for groundwater resource development
Construction Projects and Water Resources: Ideal for foundation engineering and water resource projects

The tractor-mounted water well drilling rig offers a flexible and efficient solution. Contact us to learn more about how this product can meet the demands of your project.
