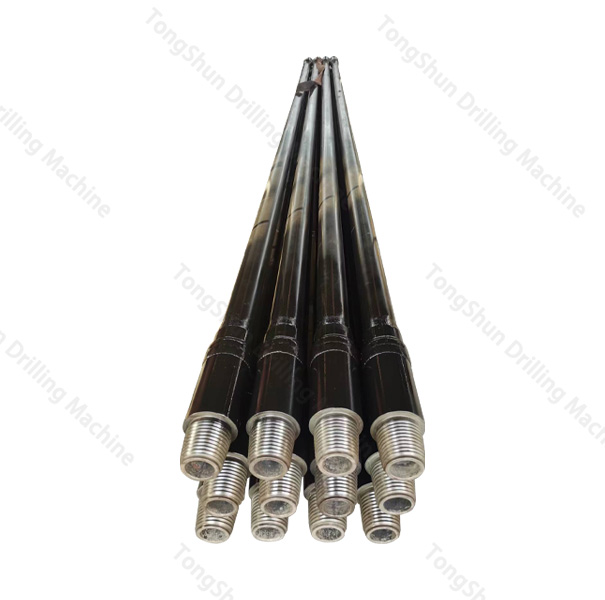

HDD Drill Pipes are specifically designed for Horizontal Directional Drilling, offering robust performance in various underground drilling applications. These pipes ensure efficiency and reliability in diverse soil and rock conditions.

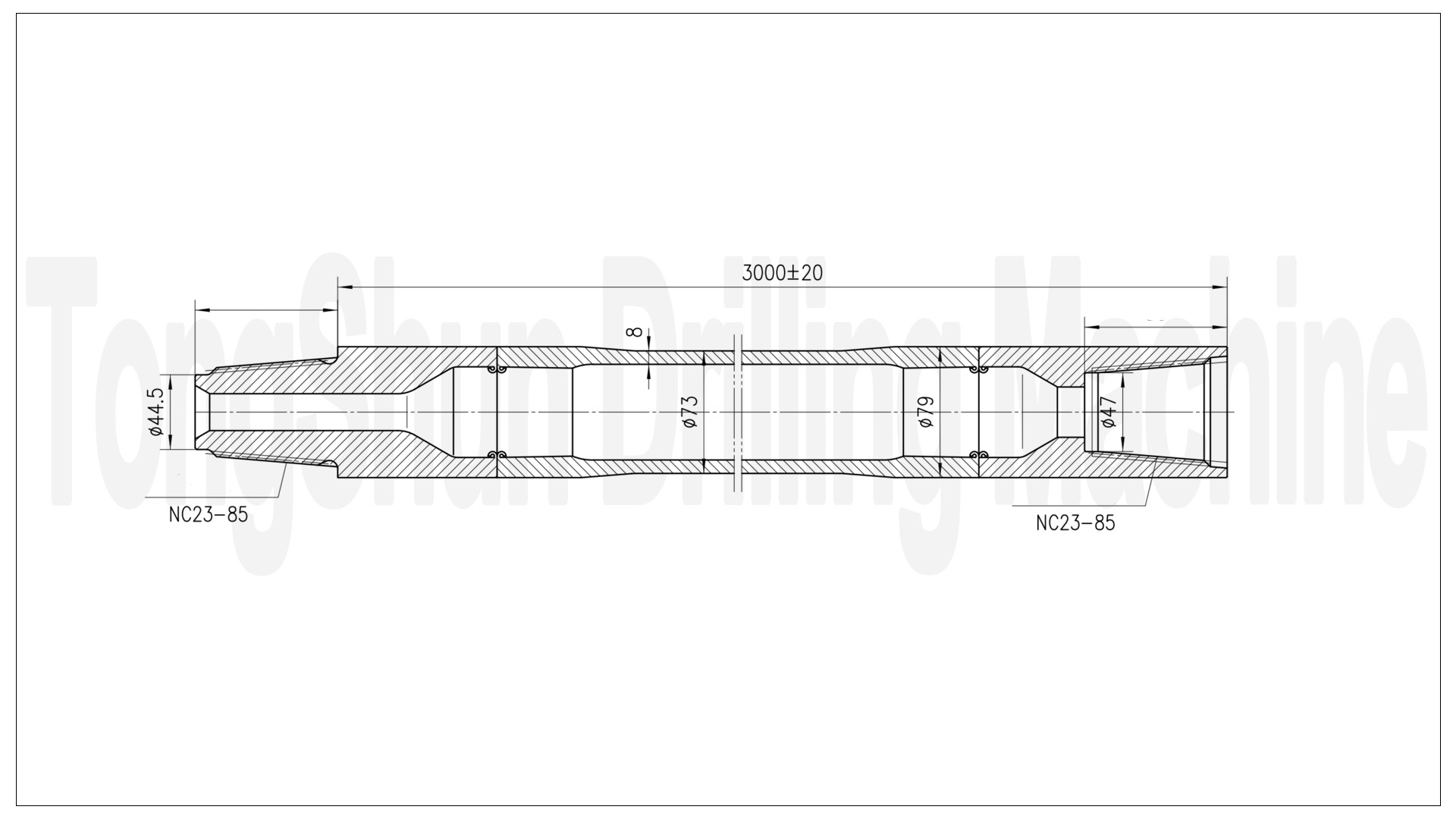

| Outer Diameter | 73mm(2 7/8") |
| Length | 3m(9.84ft), 4m(13.12ft) |
| Wall Thickness | 8mm (0.315") |
| Tool Joint OD | 78mm (3.23 Inch) |
| Steel Grade | G105, S135 |
| Thread Type | NC23 |
Durable Build: Constructed with high-quality materials for extended durability.
Adaptability: Suitable for different ground compositions and directional drilling needs.
Optimized Design: Engineered for precision and efficient drilling operations.
Various Specifications: Available in multiple sizes and specifications for versatile applications.
Resistance & Longevity: Excellent wear resistance for prolonged use in demanding environments.
Diameter | Wall Thickness | Length | Weight | Tool JointOD | Thread | Steel Grade | TorqueLimit | Min.BendRadius | ||||||
(mm) | (in) | (mm) | (in) | (m) | (ft) | (kg) | (mm) | (in) | (KN.m) | (Lb/ft) | (m) | (ft) | ||
50 | 2 | 6.5 | 0.256 | 2 | 6.56 | 17 | 53 | 2.09 | Z ×50 | G105 | 2.9 | 2140 | 38 | 124.67 |
2.5 | 8.20 | 20 | S135 | 3 | 2214 | 30 | 98.43 | |||||||
60 | 2 3/8 | 7.1 | 0.28 | 2 | 6.56 | 23 | 68 | 2.68 | Z ×60 | G105 | 6 | 4428 | 42 | 137.79 |
3 | 9.84 | 32 | S135 | 6.3 | 4650 | 33 | 108.27 | |||||||
73 | 2 7/8 | 8 | 0.315 | 3 | 9.84 | 43 | 78 | 3.23 | NC23 | G105 | 12 | 8856 | 58 | 190.29 |
4 | 13.12 | 57 | S135 | 13 | 9594 | 45 | 147.69 | |||||||
76 | 3 | 9 | 0.354 | 3 | 9.84 | 56 | 88 | 3.47 | NC26 | G105 | 14 | 10332 | 62 | 203.41 |
4 | 13.12 | 71 | S135 | 16.5 | 12177 | 56 | 183.73 | |||||||
83 | 3 1/4 | 9 | 0.354 | 3 | 9.84 | 57 | 92 | 3.62 | D80 NC26 | G105 | 16.8 | 12398 | 73 | 239.50 |
4.5 | 14.76 | 79 | S135 | 18 | 13284 | 65 | 213.26 | |||||||
89 | 3 1/2 | 9.35 | 0.368 | 4.5 | 14.76 | 99 | 105 | 4.13 | NC31 | G105 | 22.3 | 16457 | 80 | 262.47 |
6 | 19.69 | 128 | S135 | |||||||||||
102 | 4 | 10 | 0.394 | 6 | 19.69 | 160 | 123 | 4.41 | NC38 | G105 | 38 | 28044 | 90 | 295.28 |
S135 | 48 | 35424 | 82 | 296.03 | ||||||||||
114 | 4 1/2 | 10 | 0.394 | 6 | 19.69 | 162 | 127 | 5 | NC38 | G105 | 50 | 39600 | 98 | 321.52 |
S135 | 64 | 47232 | 90 | 295.28 | ||||||||||
114 | 4 1/2 | 10 | 0.394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G105 | 50 | 39600 | 98 | 321.52 |
S135 | 64 | 47232 | 90 | 295.28 | ||||||||||
Brand | Model | Length | Outside Diameter | Tool Joint OD | Wall | Steel |
CASE | Case6010 | 120"± 0.5" | 1.9"±0.031" | 2.25"±0.16" | 0.24" | S135 |
| Case6030 | 120"± 0.5" | 2.375"±0.31" | 2.625"± 0.16" | 0.24" | ||
| VERMEER | D10×15 | 120"± 0.5" | 1.66" ± 0.31" | 1.88"± 0.16" | 0.24" | |
| D16×20/ D18×22 | 120"± 0.5" | 1.9" ± 0.31" | 2.125"± 0.16" | 0.24" | ||
| D24×40F/ D24×40LW | 120"± 0.5" | 2.375" ± 0.31" | 2.625"± 0.16" | 0.28" | ||
| D33×44/ D40×40 | 180"± 0.5" | 2.375" ± 0.31" | 2.625"± 0.16" | 0.28" | ||
| D50×100 | 180"± 0.5" | 2.875" ± 0.31" | 3.25"± 0.16" | 0.362" | ||
| D80×100 | 180"± 0.5" | 3.5" ± 0.31" | 3.625"± 0.16" | 0.368" | ||
| D100×120 | 240"± 0.5" | 3.5" ± 0.31" | 4.125"± 0.16" | 0.368" | ||
| D130×120 | 240"± 0.5" | 3.5" ± 0.31" | 4.125"± 0.16" | 0.368" | ||
| DITICH WITCH | JT1720/ 1720V | 118"± 0.5" | 2.063" ± 0.31" | 2.5" | 0.27" | |
| JT2020 | 118"± 0.5" | 2.063" ± 0.31" | 2.625" | 0.27" | ||
| JT2720/2720V | 118"± 0.5" | 2.375" ± 0.31" | 2.75” | 0.28" | ||
| JT2720M1 | 118"± 0.5" | 2.375" ± 0.31" | 3" | 0.28" | ||
| JT4020 | 117.2"± 0.5" | 2.875" ± 0.31" | 3.25" | 0.362" | ||
| JT4020M1 | 117.2"± 0.5" | 2.875" ± 0.31" | 3.5" | 0.362" | ||
| JT7020 | 117.2"± 0.5" | 3.5" ± 0.31" | 4" | 0.368" |
Horizontal Directional Drilling Projects: Ideal for HDD projects in urban areas, infrastructure development, etc.
Utility Installations: Suited for installing utility lines, conduits, and pipelines.
Environmental Projects: Used in eco-sensitive areas due to minimal surface disruption.
Tailored solutions available for specific project requirements, including:
Specialized Lengths: Custom lengths for unique drilling depths.
Material Customization: Different materials for specific environmental conditions.
Thread Types: Offering various thread types for compatibility.
Follow manufacturer's instructions and safety guidelines strictly.
Regularly inspect and maintain drill pipes for optimal performance.
Ensure proper handling and storage to avoid damage during transportation.
For inquiries or further information about HDD Drill Pipes or customized solutions, please reach out to our sales team.
