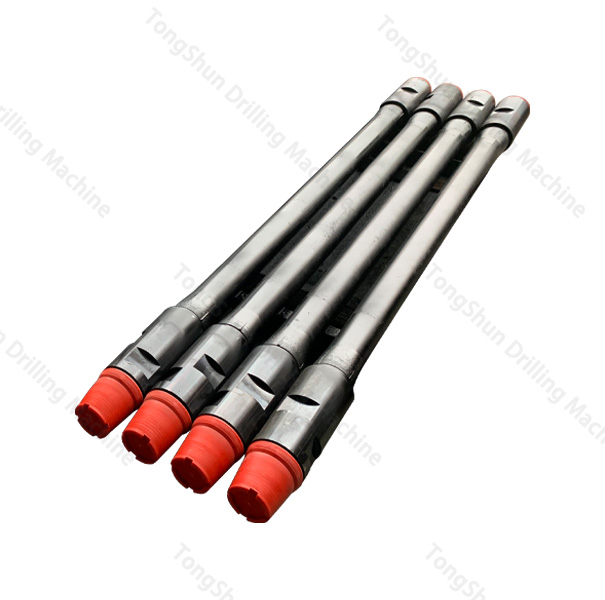

Introducing our premium 60mm Threaded Water Well Geothermal Drill Pipe, specifically designed for high-performance drilling in water well and geothermal applications. Combining strength, durability, and precision engineering, this drill pipe is the ideal solution for challenging subsurface conditions.
| OD: | 2 7/8”(73 mm) |
| Connection: | 95mm |
| Grade: | E75/R780 |
| Length: | R1~R3 (2~12.5 meters) |
| Tool joint: | 35CrMo |
| Thickness: | 9.19 mm( 10.4 LB/FT ) |
| Thread type: | NC31 |
| Thread treatment: | Phosphorization, |
| Safe drilling depth: | Within 1000 meters |
| Suitable : | Water Well, Geological, Exploration |
| Hardbending: | Boton, Arnco, TCS Ti, ARMACOR-M, Hughes Super smooth x,Duraband. |
| Drill Pipe Diameter (inch) | Thickness Type | Steel Pipe Grade | Pipe Wall Thickness | Connection Tool Joint Diameter(mm) | Thread | Weight(kg) |
| 1.6" | EU | DZ50 | 6.5 | Φ57 | 1:16 | 5.7 |
| R780 | 6.5 | |||||
| 2" | EU,IU | DZ50 | 6.5 | Φ65, Φ68 | Φ65, Φ68 | 7 |
| N80,R780 | 6.5 | |||||
| 2 3/8" | EU,IU | E75,R780 | 7 | Φ75,Φ85 | NC26 | 9.4 |
| E75,G105 | 7.11 | |||||
| 2 7/8" | EU,IU | N80,R780 | 9 | Φ95,Φ105 | NC31 | 14.2 |
| E75,G105 | 9.11 | |||||
| 3 1/2" | EU,IU | N80,R780 | 9.5/10 | Φ121,Φ127 | NC38 | 18.6 |
| E75,G105 | 9.3 | 19 |
Ideal for water well drilling in various geological conditions.
Suitable for both vertical and horizontal drilling operations.
Applicable in geothermal drilling, environmental drilling, and exploration.
Customization and Services
Tailored Solutions: Customization available for specific drilling requirements, including length, diameter, and thread type.
Technical Support: Comprehensive technical support and customer service from experienced professionals.
After-Sales Services: Includes maintenance advice, part replacement, and operational guidance.
For pricing, detailed specifications, or further inquiries, please contact us through Click here!.
