Reverse circulation drilling, or RC drilling, is a form of percussion drilling that uses compressed air to flush material cuttings out of the drill hole in a safe and efficient manner.
Western Australians take pride in claiming the invention of reverse circulation (RC) drilling, which is believed to have originated in Kalgoorlie during the mid-20th century. This innovation arose in response to the challenges posed by traditional open-hole drilling in soft iron ore and mineral sands.
As technology advanced, significant developments occurred, including the introduction of the first specific RC drill pipes in 1972. The first RC hammer was created in 1990 to provide cleaner cutting samples. Throughout the 1990s, high-pressure boosters were integrated into the drilling method to enhance performance and improve penetration rates. These advancements led to reduced costs for mining, making RC drilling one of the most cost-effective and accurate drilling methods available today.

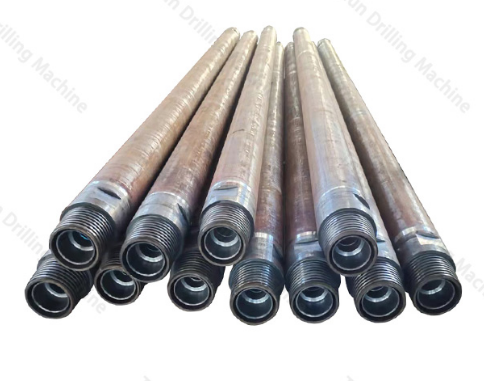

Reverse circulation (RC) drilling employs a drill bit equipped with round tungsten-carbide buttons designed to cut through hard rock and soil. The drill rods are hollow, consisting of an inner tube surrounded by an outer barrel, similar to air core drilling.
A pneumatic reciprocating piston, or downhole hammer, delivers rapid impacts to the drill stem, transferring energy to the drill bit. This concussive force hammers the bit into the rock, pulverizing it, while a rotational device ensures each impact strikes new rock surfaces.
Inside the drill bit, a dual-walled drill pipe facilitates circulation, with compressed air injected between the tubes to flush cuttings from the hole up through the inner tube. These cuttings then travel to the surface and into a cyclone, where they pass over a splitter that directs samples into a sample bag.
Exploration teams collect the samples, align them with the hole depth, and prepare them for logging by clients. The samples are subsequently sent to a lab for assay.
RC drilling generally produces dry cuttings, as compressors also pump air ahead of the drill bit, drying the rock. However, water can be injected during collaring to reduce dust and assist with cuttings retrieval. When water is used, an additive called Super Foam is mixed in, helping the cuttings bind together and enhancing sample recovery.
RC drilling is widely used in open-cut mines for pit grade control and to provide valuable insights for mine planning and blasting, typically reaching depths of 300 to 500 meters.
This method is highly effective for defining boundaries between ore bodies and waste rock, making it ideal for exploration. It delivers contaminant-free samples collected directly at the drill site, allowing for immediate assessment. Additionally, the reduced handling time contributes to lower overall program costs.
RC drill rigs, equipped with larger machinery, typically reach depths of 300 to 600 meters. However, depending on the rig size and ground conditions, there have been reports of holes drilled to depths exceeding 800 meters. The ability to achieve such depths can be hindered by groundwater, which necessitates higher air pressure and depends on the rig's pullback capacity.
RC drilling offers several clear advantages over other drilling methods:
- Greater Penetration: It penetrates hard rock more effectively than air core drilling due to its percussive force and robust drill bit design.
- Enhanced Sample Accuracy: Samples collected are easily cataloged, with precise location and depth information, allowing for accurate identification of mineral deposits.
- Suitability for Harsh Environments: RC drilling uses approximately 40% less water than diamond drilling, making it a preferable option for remote areas.
- Reduced Cross-Contamination Risk: The design of the drill bit ensures that cuttings travel through an inner tube, preventing contamination from other areas of the hole.
- Faster and More Efficient: With production rates reaching up to 200-300 meters per day, RC drilling delivers results to clients more quickly, reducing manhours and overall staff costs. This efficiency and equipment resilience in tough conditions result in cost reductions of 25-40%.
Despite its many advantages, RC drilling presents several challenges to consider when planning your drilling program:
- Higher Costs: RC drilling is generally more expensive than air core drilling, as it requires larger rigs, more equipment, and skilled operators.
- Surface Condition Requirements: Well-maintained roads are essential for RC drilling, as the size of the rigs limits their ability to operate on poorly maintained surfaces.
- Limited Geological Information: The pulverization of rock during drilling can result in less detailed geological information from the samples.
- Potential for Deviation: The drilling technique can lead to deviations in hole alignment, resulting in less precise sampling.
RC drilling is an effective method for exploratory drilling, but it comes with important safety and environmental considerations:
- Lower Environmental Impact: Although RC rigs are larger than air core drill rigs, they have a smaller footprint compared to other drilling methods, reducing the need for extensive earthworks and minimizing environmental disturbance.
- Increased Personnel Risk: The percussive nature of RC drilling, characterized by the repetitive hammering of the drill bit and the use of loud air compressors, poses risks of hearing damage or loss if proper protective equipment is not utilized.
- Handling of Cutting Samples: After drilling, personnel must manually retrieve cutting samples from the cyclone, which introduces potential hazards. Workers face risks such as falling objects, exposure to compressed air, crush injuries from pinch points around the rig, and physical strain from lifting equipment.
RC drilling and air core drilling share similarities, as both methods utilize compressed air to return drill cuttings to the surface through the inner tube of the drill rod.
However, air core drilling is better suited for unconsolidated ground conditions where less force is needed. In contrast, RC drilling benefits from a concussive force that powers the drill bit, providing additional strength and making it more effective on harder surfaces.
Due to its high speed, efficiency, and lower cost per meter, RC drilling is particularly well-suited for acquiring mineral samples during the initial stages of exploration projects. Additionally, RC rigs typically have greater capacity and are designed to accommodate larger downhole equipment, making them more appropriate for extensive drilling programs.
