What Is Oil Drill Pipe? What Types of Oil Drill Pipes Are There?

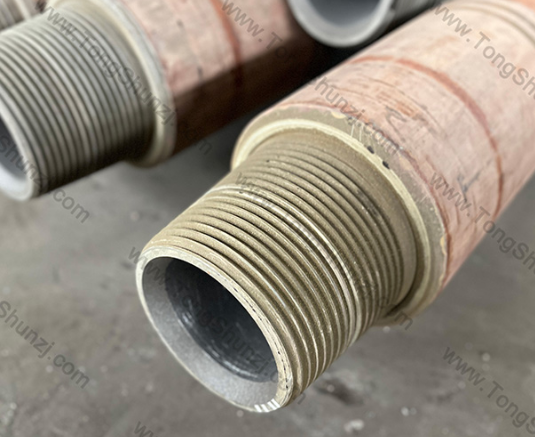

What is an oil drill pipe?

An oil drill pipe is utilized in oil well drilling operations. It is distinguished by its thin walls and lightweight per unit length. Primarily, it serves to facilitate mud passage while transmitting pulling force and torque. Additionally, there exists a variant known as an oil drill jack, characterized by thick walls and heavier weight per unit length. This type of pipe also facilitates mud passage, transmits pulling force and torque, and provides drilling weight for the drill bit.

What are the steel grades of oil drill pipes?

Drill pipes are steel pipes with threads at the end, designed to link the surface equipment of a drilling rig to the drilling and grinding equipment or bottom hole device at the bottom of a drilling well. The primary function of drill pipes is to transport drilling mud to the drill bit and to manipulate the bottom hole device alongside the drill bit by raising, lowering, or rotating it. These pipes must withstand high internal and external pressure, twisting, bending, and vibration. During oil and gas extraction and refining processes, drill pipes are often reused.

Drill pipes are categorized into three types: kelly, drill pipe, and weighted drill pipe. The connection sequence typically involves a kelly (1 piece) followed by drill pipes (n pieces, determined by the well depth), and weighted drill pipes (n pieces, determined by the design of the drill tool assembly). This categorization covers drill pipe classification, drill pipe joints, drill pipe specifications, as well as the steel grade and strength of drill pipes.

What is the length of oil drill pipe?

Oil drill pipes typically measure around 9 meters in length with a diameter of 5 inches. These pipes are manufactured as rolled seamless steel pipes. To enhance the connection strength between the pipe body and the joints, both ends of the drill pipe body are roughened and thickened. According to API standards, the thickening forms are categorized into internal and external thickening, with three types available: internal, external, and combined thickening. The transition section for thickening is generally 20 to 65mm long, with the longest reaching 120 to 130 mm.

Oil drill pipe types and their differences

Oil drill pipe is a vital component in oil drilling operations, primarily utilized for drilling and related activities. Here are common types of oil and gas drill pipes and their distinctions based on their uses and characteristics:

1. Drill Pipe: This type of pipe connects drilling tools and drill bits. It's typically crafted from non-magnetic steel to prevent interference with logging and geomagnetic exploration due to magnetism. Depending on specific requirements, it can be categorized into standard drill pipe and high-strength drill pipe.

2. Drill Collar: Drill collars are employed to link two sections of drill pipe, increasing the total weight of the drill string. They serve to enhance drilling operations and stabilize the wellbore. Drill collars can be classified into straight drill collars and spiral drill collars based on their shape and usage.

3. Anchor (Stabilizer): Anchors or stabilizers are employed to stabilize the well wall during drilling, preventing collapse and diameter expansion. They come in two main types based on their form and function principle: cutting type stabilizers and sliding type stabilizers.

4. Measurement While Drilling (MWD) Tool: This tool, installed in the drill string, enables real-time monitoring of downhole drilling parameters such as pressure, temperature, and vibration. This data guides drilling operations effectively.

These various types of oil drill pipes serve distinct roles in the oil drilling process and are suited for different working conditions and needs. Depending on factors such as well depth, formation properties, and operational requirements, drilling engineers select the appropriate oil drill pipe model to accomplish the drilling task efficiently.
