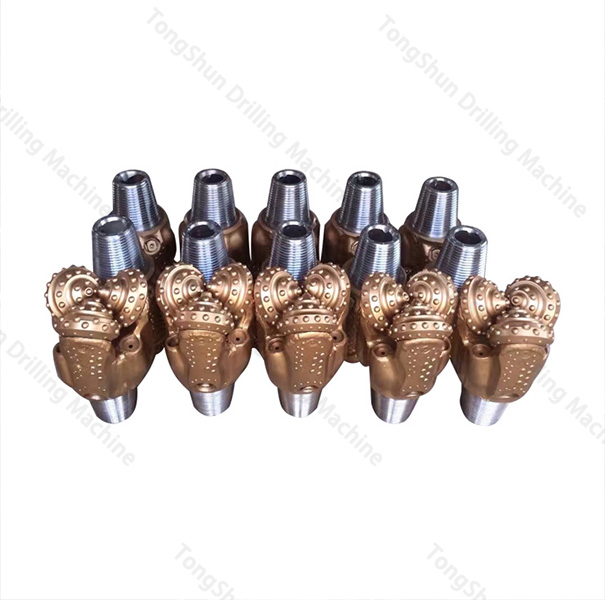

Tricone drill bits for water wells are crucial tools in the drilling industry, used for water well drilling, geological exploration, and oil drilling. These bits consist of three conical rollers, capable of effectively penetrating various rock layers.
Material: High-quality, heat-treated alloy steel for maximum strength and durability.
Size Range: A complete range of sizes to fit various pin diameters and drilling equipment. From small to large sizes, suitable for different drilling scenarios.
Thread Types: Precision-engineered threads for easy insertion and effective grip.
Standard Compliance: Designed and manufactured according to industry standards, ensuring compatibility with a wide range of drilling equipment.
1. Versatility: Suitable for various strata, from soft rock to hard rock.
2. Durability: Uses grease resistant to temperatures up to 250°C for optimal wear resistance.
3. Efficiency: An optimized flushing system includes three combined nozzles for balanced fluid flow, effective cleaning of the bottom-hole zone, and anti-balling.
| Bit size | IADC CODE | API Connection |
| 3 7/8" (98mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 615, 637 | 2 3/8" API REG |
| 4 1/2" (114.3mm） | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 615, 637 | 2 7/8" API REG |
| 4 3/4" (120.7mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 637 | 2 7/8" API REG |
| 5 1/2" (139.7mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 637 | 3 1/2" API REG |
| 5 7/8" (149mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 635, 637 | 3 1/2" API REG |
| 6" (152mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 635, 637 | 3 1/2" API REG |
| 6 1/2" (165mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 617, 635, 637 | 3 1/2" API REG |
| 6 3/4" (171mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 617, 627 | 3 1/2" API REG |
| 7 1/2" (190mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 615, 617, 627,637, 737 | 4 1/2" API REG |
| 7 7/8" (200mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 535, 617, 627,637, 737, 837 | 4 1/2" API REG |
| 8 1/2" (215.9mm) | 115, 117, 127, 217, 417, 437, 517, 515, 537, 617, 627 637, 737, 837 | 4 1/2" API REG |
| 8 3/4" (222.3mm) | 115, 117, 127, 217, 417, 437, 517, 515, 535, 537, 617, 627 637, 737, 837 | 4 1/2" API REG |
| 9 5/8" (244.5mm) | 115, 117, 127, 217, 417, 437, 517, 537, 617, 627 637, 737, 837 | 6 5/8" API REG |
| 9 7/8" (250.8mm) | 115, 117, 127, 137, 217, 417, 437, 517, 535, 537, 617, 627 637, 737, 837 | 6 5/8" API REG |
| 11 5/8" (295.3mm) | 115, 117, 127, 217, 417, 437, 517, 537, 535, 617, 627, 637, 737, 837 | 6 5/8" API REG |
| 12 1/4" (311.1mm) | 115, 117, 127, 217, 417, 437, 517, 537, 535, 617, 627, 637, 635, 737, 837 | 6 5/8" API REG |
| 13 5/8" (346.1mm) | 115, 117, 127, 217, 417, 437, 517, 537, 535, 617, 627, 637, 737, 837 | 6 5/8" API REG |
| 14 3/4" (374.7mm) | 115, 117, 127, 217, 417, 437, 517, 537, 535, 617, 627, 637, 635, 737, 837 | 7 5/8" API REG |
| 15 1/2” (393.7mm) | 115, 117, 127, 217, 417, 437, 517, 537, 535, 617, 615, 627, 637, 635, 737, 837 | 7 5/8" API REG |
| 16" (406.4mm) | 115, 117, 127, 217, 417, 437, 517, 537, 535, 617, 627, 637, 635, 737, 837 | 7 5/8" API REG |
| 17 1/2” (444.5mm) | 115, 117, 127, 217, 417, 437, 517, 537, 535, 617, 627, 637, 635, 737, 837 | 7 5/8" API REG |
| 20" (508mm) | 115, 117, 127, 217, 237, 437, 517, 515, 537, 535, 637, 635 | 7 5/8" API REG |
| 22" (558 8mm) | 115, 117, 127, 217, 237, 437, 517, 515, 537, 535, 637, 635 | 7 5/8" API REG |
| 24" (509.6mm) | 115, 117, 127, 217, 237, 437, 517, 515, 537, 535, 637, 635 | 7 5/8" API REG |
IADC | WOB | RPM | Applicable Formations |
| (kN/mm) | (r/min) | ||
| (Bit Dia) | |||
| 116, 117 | 0.35~0.8 | 150~80 | Very soft formations with low compressive strength and highdrillability .such as clay,mudston,chalk etc. |
| 136, 137 | 0.35-1.0 | 120~60 | Soft to mesium soft formations with low compressive strengthand high drillability.such as medium soft shale,hardgypsum,medium soft limestone. medium soft sandstone softformation with harder nterbeds.ect. |
| 216, 217 | 0.4~1.0 | 100-60 | Medium hard formations with high compressive strength,such asmedium soft shale,hard gypsum,medium soft limestone,mediumsoft sandstonesoft formation with harder interbeds ect. |
| 246, 247 | 0.4~1.0 | 80-50 | Medium hard formations with high compressive strength,such asabrasive shale. limestone.sandstone,dolomite,hard gypsum,marbleect |
| 417, 437, 447 | 0.35-0.9 | 150~70 | Very soft formations with low compressive strength and highdrillability, such as clay,mudston,chalk,gypsum,salt,soft shale,softlimestoneetc |
| 517, 527 | 0.35-1.0 | 140~60 | Soft formations with low compressive strength and highdrillability ,such as mudstore,gypsum,salt,soft shale.softlimestone ect. |
| 537, 547 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength, suchas medium soft shale,medium soft limestone,medium softsandstone, medium formation with harder and abrasiverinterbeds,ect. |
| 617, 627 | 0.45~1.1 | 90-50 | Medium hard formations with high compressive strength ,such ashard shalelimestone,sandstone,dolomiteect. |
| 637 | 0.5~1.2 | 80-40 | Hard formations with high compressive strength ,such as sandstone limestone,dolomite,hard gypsum,marble,ect. |
